Water Clarification Process cooling water Mirror Polish 304 Multi Cartridge Inline Filter Housing Strengthened Clamp

Basic Information
Place of Origin: China
Brand Name: PULLNER
Certification: ISO9001 ISO45001
Model Number: L-SMF
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: After plastic wrap wooden case
Delivery Time: 30 working days
Payment Terms: T/T, L/C, , D/P, D/A, Western Union, MoneyGram
Supply Ability: 100pcs per month
Detail Information
Material: 304, 316L Polish Type: Mirror Polish Or Internal Electro-polished
Surface Option: Internal Ra:0.3um/ External Ra:0.4um Max. Operating Pressure: 0.6MPa
Max. Operating Temperature: 135℃/ Design Temperature: 140℃ Steam Sterilization: In-situ / Autoclave@121℃/30min
Housing Body: 304 Or 316L Vent / Drain: 304 Or 316L
Leg: 304 Clamp: 304
Body Connection: Tri-clamp, Strengthened Clamp O-ring/ Gaskets: Silicon, Viton, EPDM, PTFE
Inlet/ Outlet: 1inch(DN 25) Clamp Pressure Gauge: 1.5 Inch Tri-clamp
Drain: 4mm Can Connect With 8mm Tube Vent: 4mm Can Connect With 8mm Tube
Brand: PULLNER
High Light:

304 Inline Filter Housing

,

Mirror Polish Inline Filter Housing

,

304 multi cartridge filter housing


Product Description

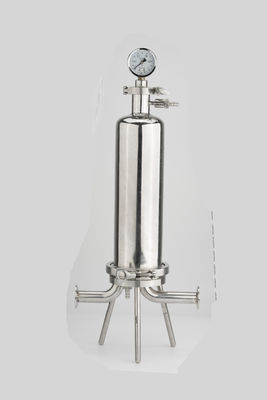

Single-Round Sanitary Housings Mirror polish 304 Stainless Steel Filter Housing



General Description

P-SCF The series single-Round liquid filter housing is a small flow high-end single-round filter housing without any cleaning dead angle. Its design fully meets the requirements of sanitary and GMP, the structure has no sanitary dead corners, and it is easy to clean; it drains thoroughly without worrying about residual liquid. High-performance media in an innovative design. Fewer filter cartridge to maintain your process flow requirements.



Features and Benefits

•Using sanitary design, no dead ends, and lowest sewage discharge design, the filter is easy to clean and no residual liquid;

• Ultra-high polishing accuracy, the inner wall can be polished 0.3μm, the outer wall can be polished 0.4μm, electrolytic polishing can be selected;

•Using new segmented clamps to enhance the sealing performance and withstand higher pressure;

•The bracket is equipped with an adjusting nut to adjust the height of the filter, which is convenient to use.



Application

Amine Sweetening, Diatomacious Earth Trap Filtration, Final Filtration for Particulates in Soft Drinks, Groudwater Remediation Filtration, Haze Reduction for Distilled Spirits, Hydrotreater Feed, Keg Filtration, Membrane System Protection, Particle Reduction in Bottle Water Manufacturing, Particle Reduction in Distilled Spirits Filtraiton, Process Cooling Water, Process Water Filtration, Public Utilities and Municipal Water Filtration, Pulp & Paper Manufacturing Filtration, RO Protection and Prefiltration, Turbidity and Particle Control in Soft Drink Water, Water Filtration for Beer Applications, Water Filtration for Wine Application, Water Injection for Enhaced Oil Recovery, Wine Clarification





Connection

Housing Connection Strengthened clamp
In-outlet Fast loading
Vent Quick release valve
Drain Quick release valve
Pressure Gauge 1.5 inches clamp



Surface Treatment

Polish Type Mirror polish or Electro-polished
Polishing Accuracy Internal Ra: 0.3μm or External Ra: 0.4μm



Water Clarification Process cooling water Mirror Polish 304 Multi Cartridge Inline Filter Housing Strengthened Clamp 0

Dimension

Code

A: Total Height

(mm)

B: Inlet / Outlet Distance

(mm)

C: Body Diameter

(mm)

D: Height of Nozzle Above Ground

(mm)

3 Round10" 760 312 200 200
3 Round20" 1040
3 Round30" 1270
3 Round40" 1540
5 Round10" 790 410 250 200
5 Round20" 1070
5 Round30" 1300
5 Round40" 1570
7 Round10" 800 426 267 200
7 Round20" 1080
7 Round30" 1310
7 Round40" 1580
9 Round20" 1160 460 300 200
9 Round30" 1390
9 Round40" 1660
12 Round30" 1440 560 337 200

Water Clarification Process cooling water Mirror Polish 304 Multi Cartridge Inline Filter Housing Strengthened Clamp 1



Specifications

Standard

GB, American Standard, German standard, Japanese standard, customized; single bag, parallel bag, multi-bag, cartridge

Models

S, T series, PBF polypropylene containers etc.,

Working pressure

0.1Mpa-1.0Mpa

Material

304, 316L

Working temperature

5-40℃

Filtering accuracy

1um-800um

Operation mode

Manual or automatic control cylinder

High-strength support basket

by uniform pore size of high-strength stainless steel mesh manufacture of 3.5mm;

Inlet and outlet

1-14 inch; customized as request

Inlet and outlet Location

Side into and side out, side into and bottom out, top into and bottom out, top into and side out; customized as request

Interface Type

flange, screw thread or customized

Filtration precision

1-800um (microns) relative or absolute precision

Seal ring material categories

general nitrile rubber, Teflon, nylon, Te Fulong acid such as high temperature and high-performance specialty materials
