products

0.6MPa PTFE Coated Liquid Water Filter Housing Silicone Sealing

Basic Information
Place of Origin: Shanghai
Brand Name: PULLNER
Certification: ISO 9001 ISO 14001
Model Number: P-TLF
Minimum Order Quantity: 1 piece
Price: USD + 100-300 + Piece
Packaging Details: Carton case
Delivery Time: 1-3 months
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 + PCS + per month
Detail Information
Product Name: PTFE Coated Liquid Filter Housing Filter Housing: PTFE
Leg: Carbon Steel Sealing: Silicone, Viton, EPDM, Teflon
Design Pressure: 0.6MPa Working Temperature: 240℃
Sterilization Method: Online Or Sterilization Cabinet:121℃ 30min/times
High Light:

PTFE Coated Liquid Filter Housing

,

0.6MPa Liquid Filter Housing

,

0.6MPa water filter housing


Product Description

P-TLF Series PTFE Coated Liquid Filter Housing

P-TLF fluorine-lined filter housing is used in all kinds of strong corrosion columns in the fine chemical industry. The parts in contact with the material and liquid are all made of PTFE material, which can well solve the filtration of the material liquid that is incompatible with stainless steel materials, especially the strong acid series.



Material

Filter Housing Shell carbon steel, inner wall PTFE
Part In Contact With The Feed Liquid PTFE
Leg Carbon steel
Sealing

Silicone, Viton, EPDM,

Teflon

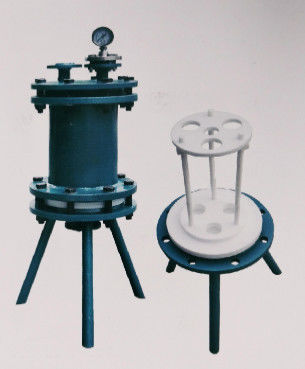

0.6MPa PTFE Coated Liquid Water Filter Housing Silicone Sealing 0



Tolerance comparison

Liquid 316SS PTFE
HNO3 NR R
H2SO4 NR R
NaOH NR R
Tetrafluorofuran NR R
Trifluoroacetate NR R

R: Recommend NR: Not Recommended



Operating Parameters

Design Pressure 0.6Mpa
Working Temperature 240℃
Sterilization Method

Online or sterilization cabinet:

121±2℃ 30min/times







Ordering Information

Code Filter Number

Filter

Length

Housing

Material

End Cap

Inlet/Outlet



Sealing

Material

Design

Pressure

P-TLF 01 05 C C1 F T Z
P-TLF 01 (Round) 05 (5")







C(Carbon steel lining PTFE)

C1 (222) F (Flange) T (PTFE) Z (0.6Mpa)
  03 10 C2 (226)
  05 20 D (DOE)
  07 30
  ... 40
