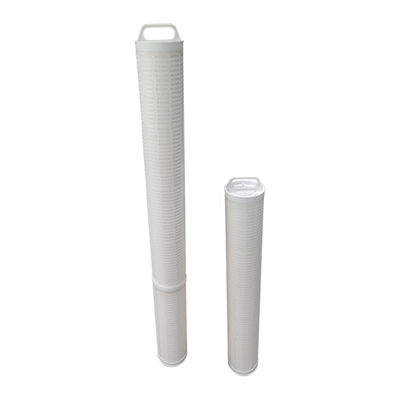

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment

Basic Information
Place of Origin: China Shanghai
Brand Name: PULLNER 5micron pp pleated filter cartridge
Certification: FDA
Model Number: PHFM
Minimum Order Quantity: 4
Price: Negotiable
Packaging Details: Carton box after individual packing of poly bag. 4pcs per carton
Delivery Time: 3-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1500pcs per week
Detail Information
OD: 6.5"(165.1) Length: 20"(508mm), 40"(1016mm), 60"(1524mm)
Material: PP, PET, Glass Fiber Filtration Rating: 1μm, 2μm, 5μm, 10μm, 15μm, 20μm, 30μm, 50μm, 70μm, 100μm
Filtration Area: 6.6㎡ MOQ: 4 Piece
Delivery Time: 3~7 Days Sample: Free
OEM: Yes Origin Country: Shanghai
High Light:

pleated washable panel filter

,

pleated washable panel filter

,

0.5 micron pleated panel filter


Product Description

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment


General Description
PHFM series high flow filter cartridge is made of diameter 6.5" and PP pleated design with big flow area and dirt holding capacity. All connection use thermal welding. It can meet different flow requirements, with a wide range of chemical compatibility, can be applied to various fields.

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 0High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 1



5micron pp pleated filter cartridge Applications:

1.Pharmaceutical industry: Pre-filtration of drugs, distilled water, biological products, various antibiotics, etc.

2.Electronics industry: Filtration of industrial water such as electronics, microelectronics, and semiconductors.

3. Food and beverage: Beer, wine, soft drinks, dairy products, bottled water, fruit wine, juice, syrup, cooking oil, etc

4. Industrial filtration: Energy, coatings, graphite, petrochemical, electroplating, mining, machining, industrial water treatment.

5. Water treatment: Drinking water, commercial water treatment, desalination



High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 2High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 3High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 4

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 5High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 6High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 7



Performance Specifications

Dimensions

Diameter

6.5" (160mm)


Length

20" (508mm)

40" (1016mm)

60" (1524mm)


Material of Construction:

Model

Filter Medium

Support/Drainage

End Caps

Seals Material

PP

Deep pleated Polypropylene

Polypropylene

Glass Fiber Reinforced Polypropylene

NBR, Silicone, EPDM, Viton

PET

Polyester

Polyester

Glass Fiber Reinforced Polypropylene





Performance comparison

Comparison chart of specific filter element number and corresponding filter footprint.

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 8




Product Display

1 High quality with clear and tidy vein. We use high quality original material to promise the efficiency . In the line of  production making,

we Combine manual and mechanical operations to promise products nice appearance.

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 9
2 OEM, 3M replacement connector.
High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 10
High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 11
High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 12




Filter Performance

Micron

1μm, 3μm, 5μm, 10μm, 15μm, 20μm,  50μm, 70μm, 100μm

Max. operating temperature

82℃

Max. operating differential pressure

3.44bar@82℃

Suggestion pressure for filter replacement

2.5Bar@20℃

Max. flow rate

20": 35m3/h

40": 70 m3/h

60": 110 m3/h





Pullner Production process:

Our production strictly follow these procedures: Pleating → Seam welding → Assembly → Trimming → Welding → Finished products → Packaging

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 13





Clean Room:

In the purification workshop, workers need to wear purification clothes, purification shoes, masks, hats and gloves. The purification workshop has high requirements on the production environment, which can ensure the cleanliness and safety of the products, and can meet the filtration requirements of food and beverage, biopharmaceutical and other industries.

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 14

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 15

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 16High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 17

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 18





Pullner Certificates:

Our plant has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.



High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 19

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 20High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 21High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 22

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 23High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 24High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 25







Shanghai Pullner Filtration Technology Co., Ltd. is a well-known enterprise integrating R&D, production and sales of micro membrane filtration equipment and filtration systems.

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 26



Pullner laboratory:

It is equipped with varieties of test facilities: Aperture distribution instrument, water single-pass test bench, scanning electro microscope, bacterial challenge lab, online particle detector, diaphragm test bench, air permeability tester, filter cartridge integrity tester, test trolley for simulating field conditions, etc. With several test experts, quickly provide customers varies conditions solutions.

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 27

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 28High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 29High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 30

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 31High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 32High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 33





Global Customers



High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 34







Pullner Exhibitions:

We have participated in professional exhibitions in the filtration industry all the year round. At the exhibition, we not only met new customers and their product needs, but also gained more understanding of the latest filtration technology and products. For us to improve existing products and develop new Products provide more professional information.

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 35

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 36

High Flow / Volume 60inch 5micron Pp Pleated Filter Cartridge Replacement For Water Treatment 37



1. Q: Are you a trading company or a manufacturer?

A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.


2. Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.

3. Q: Can you make customized products?
A: Yes, of course. if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.

4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be customized.

5. Q: What's your MOQ?
A: Normally, 100PCS/item. Any trial order which is less than MOQ is warmly welcomed. If you have a trial order, please feel free to contact us so that we can make some shipping recommendation for you to save the cost based on the quantity you need.

6. Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together.

7. Q: What is your general lead time?
A: Normally 5-7 working days for off-the-shelf samples and 10~15 days for bulk production.

8. Q: How should I pay you?
A: T/T, L/C, Western Union, MoneyGram, etc are acceptable.

9. Q: What certificate do you have?
A: Our factory is ISO9001/ISO14001/ISO45001 certified.

10. Q: How should I place an order?
A: Please kindly click "Sent Inquiry", Then our sales engineer will recommend you suitable products for your selection also give some valuable suggestion for your selection.
