SS304 Horizontal Stainless Steel Filter Housing SWRO RO Plant Water Treatment Flange 1.0MPa

Basic Information
Place of Origin: Shanghai
Brand Name: PULLNER
Certification: ISO 9001 ISO 18000 ISO 45000
Model Number: JDW-11FS
Minimum Order Quantity: 1 piece
Price: USD + 50000-100000 + Piece
Packaging Details: Carton case
Delivery Time: 3-6 Month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 + PCS + per year
Detail Information
Design Pressure: 1.0MPa Max. Operating Temperature: 80℃
Housing Body: 304/316L Sealing: Silicone, Viton, EPDM,PTFE
Vent / Drain: 304 /316L Feet: 304
Eye Bolt: 304 Housing Conncetion: Eyebolt
Pressure Gauge: M14*1.5 Inlet / Outlet: Flange
High Light:

Horizontal Stainless Steel Filter Housing 304

,

Stainless Liquid Filter Housing

,

RO Plant Industrial Filter Housing 1.0MPa


Product Description

SWRO RO Plant water treatment Flange SS 304 316L 1.0MPa Horizontal Stainless Steel Filter Housing



JDW-11FS horizontal high flow skid filter housing is a multi-stage precision filter housing used with a high flow filter cartridge. The internal use PHFL, PHFK, PHFM series high flow filters and other filter cartridges as filter element, the body shell is generally made of stainless steel, the whole adopts a skid-mounted structure when connecting with other equipment on the system, there is no need to install valves, meters and other equipment in the middle. Just use the pipeline to connect. The filter housings are designed to accommodate the PULLNER PHFL filter cartridges.

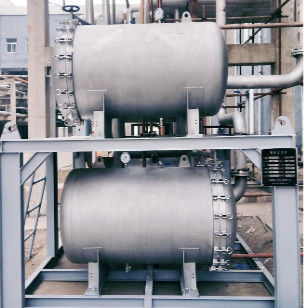

SS304 Horizontal Stainless Steel Filter Housing SWRO RO Plant Water Treatment Flange 1.0MPa 0

Choose different filter elements according to different filter media and design processes to meet the requirements of effluent water quality. The body can also choose a quick-installation type for convenient and quick replacement of the filter cartridge and cleaning. This equipment is widely used in pharmaceutical, chemical, food, beverage, water treatment, brewing, petroleum, printing and dyeing, environmental protection and other industries. It is an ideal equipment for filtering, clarifying and purifying various liquids.



Features and Benefits



•Using multi-stage filtration form, can better meet customer needs;

•The whole filter system adopts a skid-mounted structure, which is convenient to move and install.



Operating Parameters



Design Pressure 1.0Mpa
Max. Operating Temperature 80℃



Connection

Housing Connection Eyebolt
Inlet / Outlet Flange
Vent G1/2"
Drain G1/1"
Pressure Gauge M14*1.5




Material

Housing Body 304/316L
Vent / Drain 304/316L
Eye bolt 304
Feet 304
Sealing

Silicone, Viton, EPDM,PTFE

Industry:

Municipal Water

General Industrial

Oil & Gas

Chemicals&Petrochemicals

Food & Beverage

Electronics



Application:

Pre-RO Water

Process Waters

Wastewater&Reclaimed Waters

Injection & Produced Waters

DE Trap

Clarification

Amine Sweetening

Catalyst Protection Recovery

Machine Coolants





Ordering Information

JDX-11FS 04 L 20 S F50 S M O
Code Filter Number Filter Model Filter Length Filter Material Inlet / Outlet Sealing Material Surface Treatment Design Pressure
JDX-11FS 02 (Double) L (PHFL) 20 (20") S (304) F50 (Flange DN50) S (Silicone) M (Mirror Polished) O (1.0Mpa)
  04 (Quadruple) K (PHFK) 40 L (316L) F80 V (Viton) E (Electro-polished)
  06

M (PHFM)



60   F125 E (EPDM) P (Abrasive blasting)
  08       F150 T (PTFE)
  10       F200
  ...
