Product Details:
|
| Name: | PHFL High Flow Filter Cartridge | Length: | 1016mm |
|---|---|---|---|
| OD: | 152.4mm | Max. Operating Tempeature: | 82°C |
| Material: | PP | Filtration Rating: | 5um |
| Filtration Area: | 8㎡ | Max. Flow Rate: | 70 Cube Meter Pre Hour/ 40'' |
| Suggestion Pressure For Filter Replacement: | 1.5 Bar | ||
| High Light: | SWRO Industrial High Flow Cartridge,Desalination Plant High Flow Filter Element,High Flow Filter Cartridge 40 Inch |
||

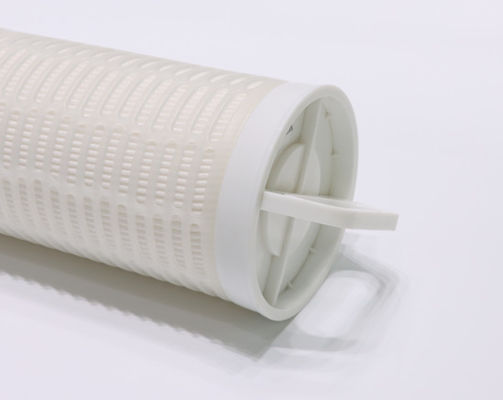

SWRO Desalination plant high flow filter cartridge 40 Inch OD152.4mm Micron5um Industrial Filtration
High Flow Filter Cartridge General Description
PHFM High Flow Filter Cartridge is made of diameter 6.5" and pleated design with big flow area and dirt holding capacity. It can meet different flow requirements, with a wide range of chemical compatibility, can be applied to various fields.
High Flow Filter Cartridge Performance Specifications
Dimensions(nominal)
|
OD |
6” (152mm) |
|
Length |
40"(1016mm) |
Filter Performance
| Micron | 5μm |
| Maximum operating temperature: | 82℃ |
|
Maximum operating differential pressure (Inside to outside flow direction) |
3.44bar@82℃ |
| Suggestion pressure for filter replacement | 2.5Bar@20℃ |
| Max. flow rate | 40": 70m3/h |
| 60": 110m3/h | |
| Filtration direction |
outside to inside |
Material of Construction
|
Model |
Filter Media |
Support/Drainage |
End Caps |
Seals Material |
|
PP |
Pleated depth |
Polypropylene |
Glass Fiber Reinforced Polypropylene |
NBR, Silicone, EPDM, Viton
|
|
PP |
Melt blown |
/ |
Glass Fiber Reinforced Polypropylene |
High Flow Filter Cartridge Applications:
1. General Purpose: RO Prefiltration, all kinds process water purification
2. Industrial: Process fluid, process water, condensed water, coolant, wastewater treatment;
3. Food and Beverage: Process water;
4. Petrochemical: Various solvents, chilled water, brine filtration
5. Power Plant: Supplementary water, condensation water, coolant
High Flow Filter Cartridge Features and Benefits:
* 40” outer cage is one piece, with high strength can withstand one adult weight, ensure big effective filtration area, long life;
* Inside to outside flow direction keeps all of the contamination catched;
* Gradient aperture deep polypropylene fiber filter media, aperture along the fluid motion direction becomes smaller, levels intercept different sizes particles, which has excellent dirt holding capacity and low flow resistance.
* Easy installation save, less cartridge change out help customers save the labor cost;
* Integral support, high strength, high dirt holding capacity, long service life;
* Single cartridge could achieve flow rate 110m3/h;
* Filtration systems are 50% smaller than typical size system;
* Filtration efficiency reach 99.8%;
* Strict quality control system, complete production process flow;
* Short delivery period;
* Flexible payment method: T/T, L/C, West Union, Paypal;
* Free technical support;
* MOQ 1 piece;
* FREE sample.
High Flow Filter Cartridge Clean Room:
In the purification workshop, workers need to wear purification clothes, purification shoes, masks, hats and gloves. The purification workshop has high requirements on the production environment, which can ensure the cleanliness and safety of the products, and can meet the filtration requirements of food and beverage, biopharmaceutical and other industries.
Pullner Production process:
Our production strictly follow these procedures: Pleating → Seam welding → Assembly → Trimming → Welding → Finished products → Packaging
Pullner Certificates:
Our plant has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
Pullner Exhibitions:
We have participated in professional exhibitions in the filtration industry all the year round. At the exhibition, we not only met new customers and their product needs, but also gained more understanding of the latest filtration technology and products. For us to improve existing products and develop new Products provide more professional information.
1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.
