Product Details:
|
| PHFK: | High Flow Filter Cartridge | Maximum Operating Temperature: | 82℃ |
|---|---|---|---|
| Filter Area: | 6.6㎡ | Length: | 40inches |
| Flow Rate: | 35m³/hr | Material: | PP |
| Brand: | Pullner | Original Place: | Shanghai |
| High Light: | RO PP Pleated Industrial Water Filter,PHFK High Flow Filter Cartridge,Desalination PP Pleated Filter Cartridge |
||
PHFK series Cartridge Filter 40" PP Pleated Filter Cartridge
Adopt large flow and pleated structure, internal with high strength polypropylene support skeleton, fluid direction from the outside to the inside, the external support is divided into integral polypropylene skeleton and polyester screen two structures
Material Construction
| Filter Media | PP: Deep Pleated PP/Melt PP | FO: Organic Fiber | GF: Resin Synthetic Glass Fiber |
| Support/Drainage | PP | Organic Fiber | Polyester |
| End Cap Material | Fiberglass Reinforced Polypropylene | Fiberglass Reinforced Polypropylene | Fiberglass Reinforced Polypropylene |
Flow Rate and Filtration Area
|
Size (Diameter*Length) |
Design Flow (m3/hr) |
Maximum Flow (m3/hr) |
Filtration Area (㎡) |
| 6"*20" | 15 | 40 | 2.6 |
| 6"*40" | 30 | 80 | 5.2 |
| 6"*60" | 45 | 120 | 7.8 |
Filter Performance
| Micron | 1um, 3um, 5um, 10um, 15um, 20um, 50um, 70um, 100um |
| Max. operating temperature | 82℃ |
| Max. operating differential pressure | 3.44bar@82℃ |
| Suggestion pressure for filter replacement | 2.5Bar@20℃ |
* Pharmaceutical industry: Pre-filtration of drugs, distilled water, biological products, various antibiotics, etc.
* Food and beverage: Beer, wine, soft drinks, dairy products, bottled water, fruit wine, juice, syrup, cooking oil, etc
* Electronics industry: Filtration of industrial water such as electronics, microelectronics, and semiconductors.

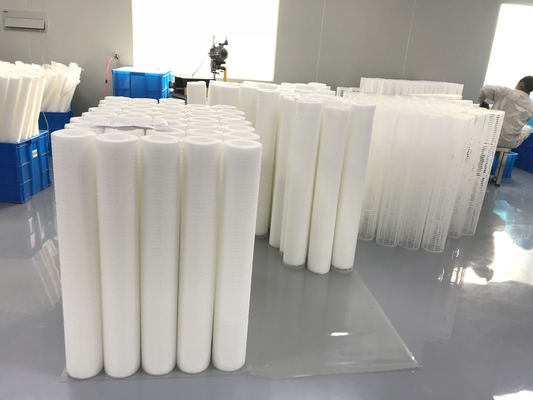

Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
