Product Details:
|
| Length: | 40" | OD: | 6" |
|---|---|---|---|
| Filter Area: | 6㎡ | Micron: | 0.1-100um |
| Max. Operating Temperature: | Pleated Glass Fiber:121℃ | Suggestion Pressure For Filter Replacement: | 2.5Bar@20℃ |
| Brand: | Pullner | Place Of Manufacture: | Shanghai |
| High Light: | 40" PHFK Cartridge Filter,PHFK PP Pleated Filter Cartridge,Condensation Water High Flow Filter Cartridge |
||

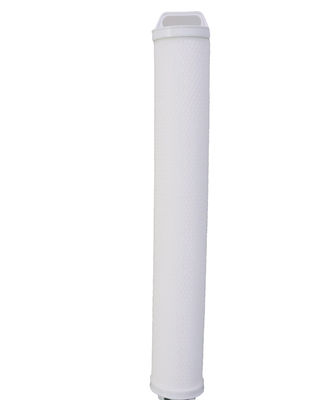

40"PHFK Cartridge Filter PP Pleated Filter Cartridge for water filter and condensation water.
A wide range of applications, the use of large diameter and pleated form, inside the filter element has a high strength polypropylene support skeleton, fluid flow direction from outside to inside, the external support is divided into integral polypropylene skeleton and polyester filter screen two structures
Material Construction
| Filter Media | PP: Deep Pleated PP/Melt PP | FO: Organic Fiber | GF: Resin Synthetic Glass Fiber |
| Support/Drainage | PP | Organic Fiber | Polyester |
| End Cap Material | Fiberglass Reinforced PP | Fiberglass Reinforced PP | Fiberglass Reinforced PP |
Flow Rate and Filtration Area
|
Size (Diameter*Length) |
Design Flow (m3/hr) |
Maximum Flow (m3/hr) |
Filtration Area (㎡) |
| 6"*20" | 15 | 40 | 2.6 |
| 6"*40" | 30 | 80 | 5.2 |
| 6"*60" | 45 | 120 | 7.8 |
Filter Performance
| Micron | 1um, 3um, 5um, 10um, 15um, 20um, 50um, 70um, 100um |
| Max. operating temperature | 82℃ |
| Max. operating differential pressure | 3.44bar@82℃ |
| Suggestion pressure for filter replacement | 2.5Bar@20℃ |
*Food and beverage
*Sea water destination
*Power plant condensation
*Pharmaceutical engineering
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
