Product Details:
|
| OD: | 68.5mm | Length: | 10 "- 40 " |
|---|---|---|---|
| Material: | PP | Flow Rate: | 0.8~1.2 ㎡ |
| Removal Rating: | 99.98% | Max. Operating Temperature: | 82℃ |
| Brand: | Pullner | Original Place: | China |
| Highlight: | PLZ PP Pleated Water Filter Cartridge,High Viscosity Liquids PP Pleated Filter,OD 68.5mm Water Filter Cartridge |
||

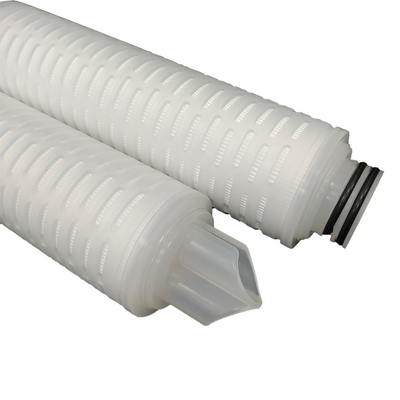

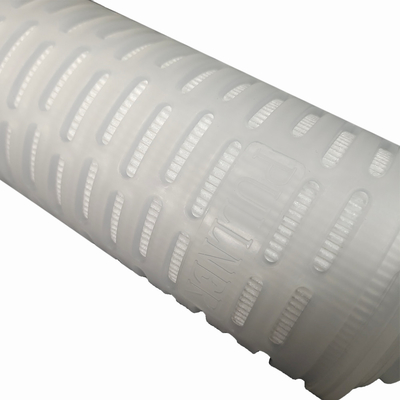

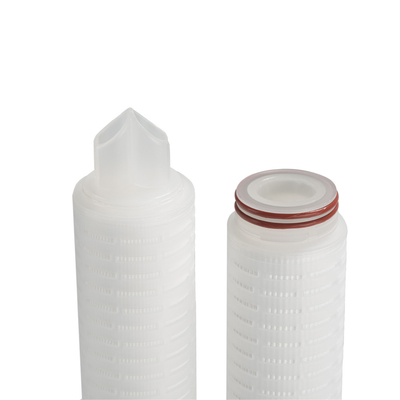

PP Pleated OD 68.5mm Water Pleated Filter Cartridge
This series pleated water filter using multi-layer nanofiber material, gradient structure design, high capacity. The size of the gradient aperture enables the filter cartridge to have a stronger fouling capacity, which can effectively improve the surface clogging problem and prolong the service life of the filter cartridge. Suitable for high suspended particles, colloidal substances, high viscosity liquids.
![]()
![]()
![]()
Specifications
| Item | Technical Parameters |
| Filter medium | Polypropylene (PP) |
| Support/Drainage | Polypropylene (PP) |
| Core/Cage/End Cap | Polypropylene (PP) |
| Outside diameter | 2.7" (68.5mm) |
| Length | 10", 20", 30", 40" |
| Micron | 0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um |
| Filtration area | 0.4-0.7m² |
| Max. operating differential pressure | ΔP≤0.35MPa at25℃ |
| Max. operating differential pressure (reverse direction) | ΔP≤0.28MPa at60℃ |
| Max. operating temperature | 80℃(Stainless steel support is recommended for temperature exceeds 50℃) |
| Sterilization temperature | 30 minute cycles @121℃ |
| Max. operating pressure | 4bar/21℃ |
| 2.4bar/80℃ |
Material Constructions
| Filter media | Polypropylene (PP) |
| Support/Drainage | Polypropylene (PP) |
| Cage/Core/End caps | Polypropylene (PP) |
| Seal material | Silicone, NBR, Viton, EPDM |
![]()
Food and beverage: beer, wine filtration; juice and soda Filtration, oral liquid filtration; Additives, oil filtration
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtration
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products; Chemical auxiliary filtration
Petrochemical industry: aviation kerosene filtration; Diesel and fuel
![]()
![]()

Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
![]()
![]()
![]()
![]()
Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
![]()
![]()
