Product Details:
|
| Max Operating Temperature: | 82℃ | Length: | 20" 40" 60" |
|---|---|---|---|
| Filter Area: | 6.5㎡/40" | Material: | Polypropylene |
| Suggestion Pressure For Filter Replacement: | 2.5Bar@20℃ | Filtration Micron: | 0.1-100um |
| Manufacture: | Shanghai | Brand: | Pullner |
| High Light: | 165mm High Flow Filter Cartridge,Desalination Pretreatment High Flow Filter Cartridge,RO Water Filter Cartridge |
||

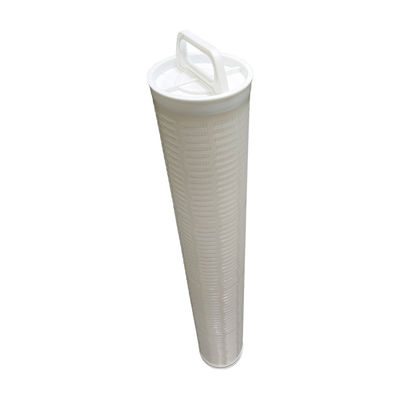

6.5''/165mm High flow filter cartridge for RO prefiltration.desalination pretreatment
It can be used for a variety of flow requirements, a wide range of chemical applications can be applied to a variety of fields.This high flow filter adopts 6.5"/165mm large diameter structure and pleated form, with high filtration area and dirt holding capacity, For example, the filtration of condensate from power plants,RO security filtration, seawater desalination pretreatment, filtration of raw materials, solvents and water in the biopharmaceutical industry process water treatment of food and beverages, etc.
Material Construction
| Filter Media | Support/Drainage | End Caps | Seals Material |
|
Deep Pleated Polypropylene |
Polypropylene |
Glass Fiber Reinforced Polypropylene |
NBR,EPDM,Viton |
| Glass Fiber/Polyester | Glass Fiber/Polyester |
Glass Fiber Reinforced Polypropylene |
Filter Performance
| Micron | 0.1-100um |
| Max. operating temperature | 82℃ |
| Max. operating differential pressure | 3.44bar@82℃ |
| Suggestion pressure for filter replacement | 2.5Bar |
Flow Rate and Filtration Area
|
Size (Diameter*Length) |
Design Flow (m3/hr) |
Maximum Flow (m3/hr) |
Filtration Area (㎡) |
|
6"*20" |
15 |
40 |
2.6 |
|
6"*40" |
30 |
80 |
5.2 |
|
6"*60" |
45 |
120 |
7.8 |
