Product Details:
|
| OD: | 6"(152.44mm) | Length: | 20"/40"/60" |
|---|---|---|---|
| Max Operating Temperature: | 82℃ | Max Flow Rate: | 40":70m³/h;60":110m³/h |
| Suggestion Pressure For Filter Replacement: | 2.5bar | Filtration Area: | 7㎡/ 40" |
| Original Place: | China | Brand: | Pullner |
| High Light: | Ro High Flow Pleated Cartridge,High Flow Pleated Filter Cartridge 6",Pleated High Flow Cartridge |
||

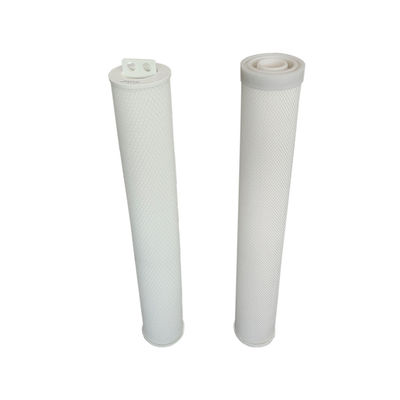

High Flow Filter Cartridge,High-quality
The number of filter element replacements is small.Large flow rate per cartridge,High-quality special filter materials.In the filtering method of inside and out, all impurities are intercepted inside the filter element.With a complete polypropylene structure and a wide range of chemical applications.No metal frame minimizes losses due to discarding.
Material Construction
| Filter Media |
PP:Deep Pleated PP/ Melt PP
|
FO:Organic Fiber | GF:Glass Fiber/Polyester |
| Support/Drainage | PP |
Organic Fiber
|
Polyester |
| End Cap Material |
Fiberglass reinforced polypropylene |
Fiberglass reinforced polypropylene |
Fiberglass reinforced polypropylene |
Performance
| Maximum Operation Temperatue |
PP:82°C FO:120℃ GF:121℃
|
| Maximum Operation Differential Pressure |
FO:3.44bar / 120°C GF:3.44bar / 121°C |
Flow Rate and Filtration Area
|
Size (Diameter*Length) |
Design Flow (m3/hr) |
Maximum Flow (m3/hr) |
Filtration Area (㎡) |
| 6"*20" | 15 | 40 | 2.6 |
| 6"*40" | 30 | 80 | 5.2 |
| 6"*60" | 45 | 120 |
7.8 |
* Petrochemical: Various solvents,chilled water,brine filtration.* General purpose: RO Prefiltration,all kinds process water purifi-cation;
* Industrial purpose: Process fluid,process water,condensed water,collant,wastewater treatment；
* Food and Beverage: Process water;
* Power Plant: Iron removal filters element,condensate filter element.stator cooling water.etc;
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
