Product Details:
|
| Max Operating Temperature: | Pleated Glass Fiber:121℃，Pleated PP:82℃ | Max Flow Rate: | 40" Filiter :70m³/h |
|---|---|---|---|
| OD: | 6"(152.44mm) | Filtration Area: | 6m²/40'' |
| Micron: | 0.1-100um | Length: | 40" |
| Brand: | Pullner | Manufacture Place: | China |
| High Light: | Water RO High Flow Filter Cartridge,PP Cent Core High Flow Cartridge,100um High Flow Pleated Filter Cartridge |
||

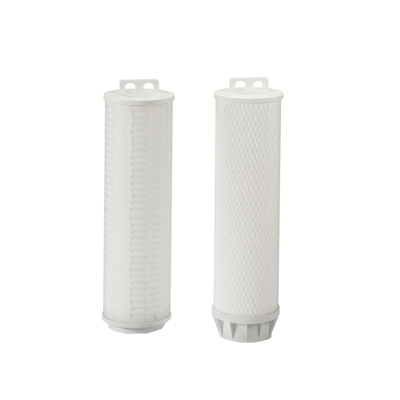

PP cent core High Flow Filter Cartridge
This series high-flow water filter's micron is 0.1-100um,which made of 6〞(152.4mm) large diameter structure.Can be applied to various filed,such as Ro-prefiltration,desaliantion pretreatment,Petrochemical industry various solvents,etc.Fluid flow direction from outside to inside, and external support is divided into two structures: integral polypropylene skeleton and polyester filter.
Material Construction
| Model | Filter Media | Support/Drainage | End Caps | Seals Material |
| PP |
Deep Pleated Polypropylene |
Polypropylene |
Glass Fiber Reinforced Polypropylene |
NBR,EPDM,Viton |
| GF | Glass Fiber/Polyester | Glass Fiber/Polyester |
Glass Fiber Reinforced Polypropylene |
Filter Performance
| Micron | 0.1-100um |
| Max. operating temperature | Pleated Glass Fiber:121℃,Pleated PP:82℃ |
| Max. operating differential pressure | Pleated Glass Fiber:3.44bar@121℃,Pleated PP:3.44bar@82℃ |
| Suggestion pressure for filter replacement | 2.5Bar |
Flow Rate and Filtration Area
|
Size (Diameter*Length) |
Design Flow (m3/hr) |
Maximum Flow (m3/hr) |
Filtration Area (㎡) |
|
6"*20" |
15 |
40 |
2.6 |
|
6"*40" |
30 |
80 |
5.2 |
|
6"*60" |
45 |
120 |
7.8 |
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
