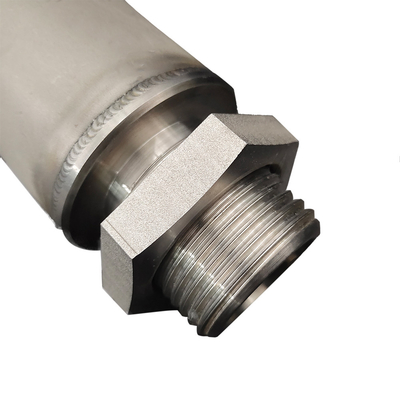

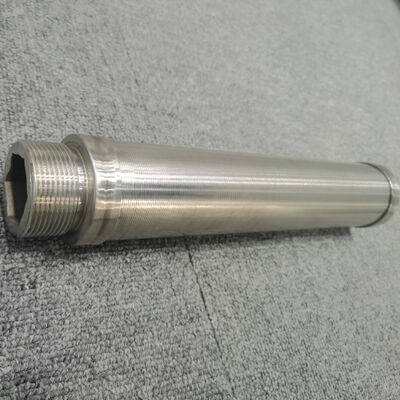

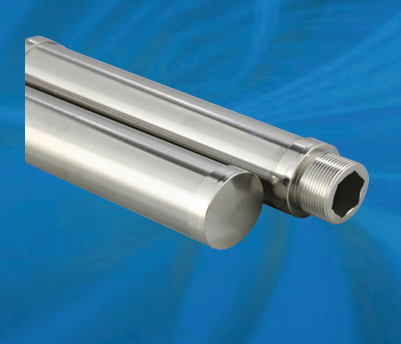

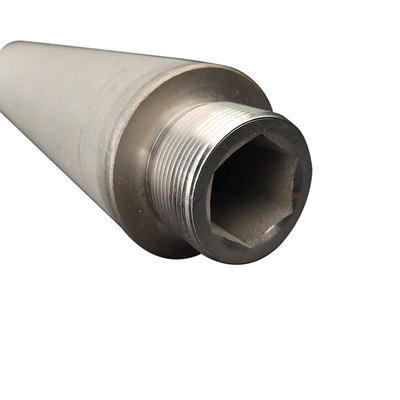

Pre-Filtration Metal Filter Cartridge - PHSV Series
The PHSV series metal wedge wire filter cartridge is manufactured through spiral welding of rib and V-shaped wire on specialized welding equipment. This industrial-grade filtration solution combines durability with precision engineering.
Key Features
Simple yet robust structure with high strength and hardness
Excellent wear and corrosion resistance for long service life
Precisely uniform filtration gaps for consistent performance
Easy cleaning and back-washing capability
Ideal for filtration of rigid particles in high viscosity slurries
Customizable wedge structure to meet specific application requirements
Product Parameters
| Filter Material |
304/316L |
| Center Rod/Enclosure/End cap |
304/316L |
| Sealing material |
EPDM/PTFE |
| Design Pressure |
0.8 Mpa |
| Maximum working pressure diffiential |
0.5Mpa |
| Highest working pressure differential |
480 degrees |
Features:

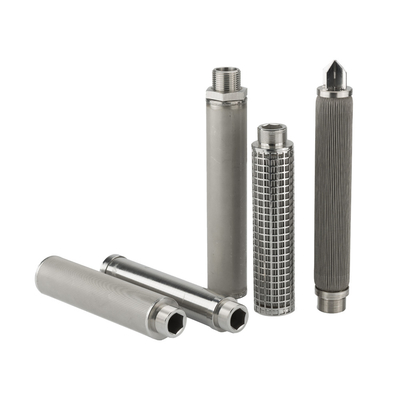

Metal filter cartridges are high-strength filtration elements manufactured from stainless steel and other metal materials, designed for demanding industrial applications. Featuring high temperature resistance, high pressure tolerance, excellent corrosion resistance, and long service life, metal filter cartridges are widely used in chemical processing,
pharmaceutical production, water treatment, food & beverage, power generation, metallurgy, and new energy industries.
Common structures include sintered stainless steel wire mesh cartridges, stainless steel fiber sintered felt cartridges, and stainless steel powder sintered cartridges, enabling precise filtration from coarse to fine micron ratings. With uniform pore distribution and outstanding mechanical strength, metal filter cartridges maintain stable filtration efficiency even under harsh operating conditions.
Unlike disposable filter elements, metal filter cartridges are cleanable and reusable, supporting backwashing, chemical cleaning, and thermal regeneration. This significantly reduces operating costs and makes them an ideal choice for continuous and environmentally friendly filtration systems.
Product Description:
| Item |
Description |
| Material |
SS304 / SS316L |
| Filtration Rating |
0.5 μm – 100 μm (customizable) |
| Filter Media |
Sintered wire mesh / Sintered fiber felt / Sintered powder |
| Operating Temperature |
Up to 600°C (depending on material) |
| Operating Pressure |
Up to 30 MPa |
| Flow Direction |
Inside to outside / Outside to inside |
| Cleaning Method |
Backwashing, ultrasonic cleaning, chemical cleaning |
| Service Life |
Long-term, reusable |
| Applications |
Chemical, pharmaceutical, water treatment, food & beverage, power, new energy |
Pullner Laboratory:
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.
2. Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.
3. Q: Can you make customized products?
A: Yes, of course. if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.
4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be customized.
5. Q: What's your MOQ?
A: Normally, 100PCS/item. Any trial order which is less than MOQ is warmly welcomed. If you have a trial order, please feel free to contact us so that we can make some shipping recommendation for you to save the cost based on the quantity you need.
6. Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together.
