Product Details:
Place of Origin: CHINA
Brand Name: PULLNER
Certification: FDA/ISO 9001/ISO 14001
Model Number: 130 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: To be negotiated
Packaging Details: Individual packaged in carton box after poly bag
Delivery Time: 1 Month
Payment Terms: D/A,L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability: 50 Pcs per month
Contact Now

130 Series φ130mm Pleated High Flow Filter Cartridge with 200L/min Flow Rate and 2m² Filtration Area

Description
Highlight:

φ130mm High Flow Filter Cartridge

,

200L/min High Flow Filter Cartridge

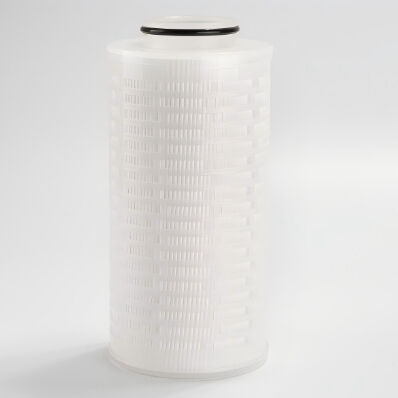

130 Series--Pleated Filter Cartridge (φ130mm)
Product Overview
The 130 Series Pleated Filter Cartridge is designed for industrial processes requiring high flow rates, delivering over 200L/min flow capacity. Its compact and efficient design maximizes space utilization while providing superior filtration performance.
Key Features
  • High flow capacity exceeding 200L/min
  • Large filtration area (>2m² per element) for extended service life
  • Compact design optimizes equipment space requirements
  • Reduces downtime through extended filter life and high dirt holding capacity
  • Pleated design enhances filtration efficiency

Performance

Filtration Rating 0.05μm, 0.1μm, 0.22μm, 0.45μm, 0.65μm, 1μm, 3μm, 5μm, 10μm
Maximum Operating Temperature 80℃
Maximum Operating Difference Pressure

4bar/21℃

2.4bar/80℃


Material Construction

Filter Media

PFL:PTFE(Hydrophobicity) PFLH:PTFE(Hydrophilic)

EPS:PES HPPV:PP
Cage/Core/End Caps Polypropylene (PP)
Seal Material EPDM, Silicone, Viton


Biological Safety

Dissolution Content

＜30mg/10"

＜0.25EU/ml/10"


Ordering Information

 130                                                     PFL                                                            002010                      S                                 E

Series Micron Length End Cap Type Seal Material
130 PFL PFLH EPS HPPV 10 =10"

S=334 Single O-ring

 E=EPDM
0020=0.2μm 0020=0.2μm 0005=0.05μm 0050=0.5μm
S=Silicone
0050=0.5μm 0050=0.5μm 0010=0.1μm 0100=1.0μm
V=Viton
0100=1.0μm 0100=1.0μm 0022=0.22μm 0150=1.5μm


0300=3.0μm 0300=3.0μm 0045=0.45μm 0300=3.0μm



0500=5.0μm 0500=5.0μm 0065=0.65μm 0500=5.0μm

1000=10μm 1000=10μm 0120=1.2μm 1000=10μm




2000=20μm




4000=40μm




7000=70μm




9000=90μm
