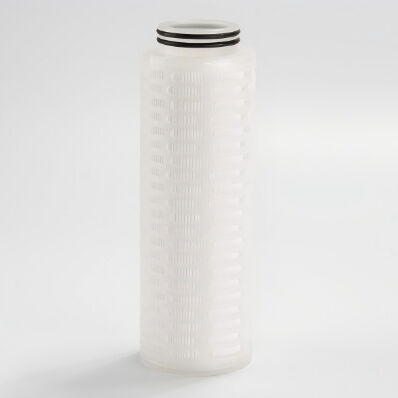

83 Series Pleated Filter Cartridge Ф80mm for FPD Manufacturing with 120L/Min High Flow Rate

83 Series Pleated Filter Cartridge Ф80mm for FPD Manufacturing with 120L/Min High Flow Rate
83 Series Pleated Filter Cartridge Ф80mm for FPD Manufacturing with 120L/Min High Flow Rate
83 Series Pleated Filter Cartridge Ф80mm for FPD Manufacturing with 120L/Min High Flow Rate 83 Series Pleated Filter Cartridge Ф80mm for FPD Manufacturing with 120L/Min High Flow Rate

Large Image :  83 Series Pleated Filter Cartridge Ф80mm for FPD Manufacturing with 120L/Min High Flow Rate

Product Details:
Place of Origin: CHINA
Brand Name: PULLNER
Certification: FDA/ISO 9001/ISO 14001
Model Number: 83 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: To be negotiated
Packaging Details: Individual packaged in carton box after poly bag.
Delivery Time: 1 Month
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 50Pcs per month
Contact Now

83 Series Pleated Filter Cartridge Ф80mm for FPD Manufacturing with 120L/Min High Flow Rate

Description
Highlight:

120L/Min Pleated Filter Cartridge

,

FPD Manufacturing Pleated Filter Cartridge

,

83 Series Pleated Filter Cartridge

83 Series--Pleated Filter Cartridge(Ф80mm)

Product Overview
The 83 Series pleated filter cartridge is specifically engineered for wet process filtration in FPD (flat-panel display) manufacturing applications. Featuring an expanded filtration area and enhanced flow capacity, this cartridge delivers optimal performance for 5-6 generation production lines with flow requirements up to 120L/Min.
Key Features
  • Specialized design for FPD manufacturing wet processes
  • Increased filtration surface area for superior performance
  • High flow rate capacity (120L/Min)
  • Compatible with 5-6 generation production lines
  • 80mm diameter configuration

Material Construction

Filter media

PFL: PTFE(Hydrophobicity) PFLH: PTFE(Hydrophilic)

EPS: PES HPPV: PP
Cage/Core/End Caps Polypropylene (PP)
Seal Material EPDM, Silicone, Viton


Performance

Filtration Rating 0.05μm, 0.1μm, 0.22μm, 0.45μm, 1μm, 1.2μm, 3μm, 5μm, 10μm
Maximum Operating Temperature 80℃
Maximum Positive Difference Pressure

4bar/21℃

2.4bar/80℃


Biological Safety

Every 10 inches of dissolved matter ＜30mg
Endotoxin 0.25EU/ml


Ordering Information

83                                                PFL0020                                              10               S                       E

Series Micron Length End Cap Type Seal Material
83 PFL PFLH EPS HPPV 10 =10" C5=222/Flat E=EPDM
0020=0.2μm 0020=0.2μm 0005=0.05μm 0050=0.5μm C6=226/Flat S=Silicone
0050=0.5μm 0050=0.5μm 0010=0.1μm 0100=1.0μm
V=Viton
0100=1.0μm 0100=1.0μm 0022=0.22μm 0150=1.5μm


0300=3.0μm 0300=3.0μm 0045=0.45μm 0300=3.0μm



0500=5.0μm 0500=5.0μm 0065=0.65μm 0500=5.0μm

1000=10μm 1000=10μm 0120=1.2μm 1000=10μm




2000=20μm




4000=40μm




7000=70μm




9000=90μm

83 Series Pleated Filter Cartridge Ф80mm for FPD Manufacturing with 120L/Min High Flow Rate 0

83 Series Pleated Filter Cartridge Ф80mm for FPD Manufacturing with 120L/Min High Flow Rate 1

83 Series Pleated Filter Cartridge Ф80mm for FPD Manufacturing with 120L/Min High Flow Rate 2
