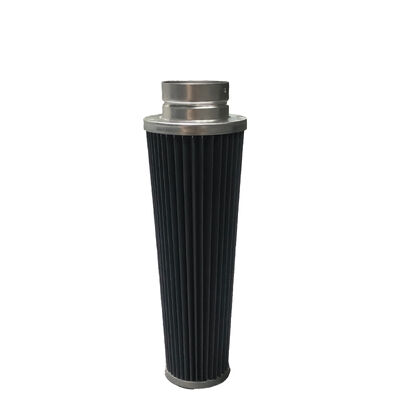

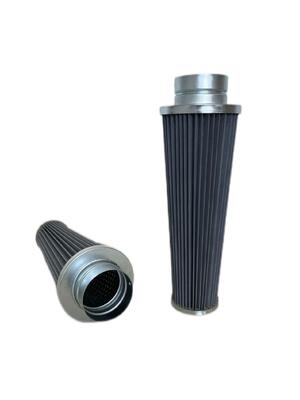

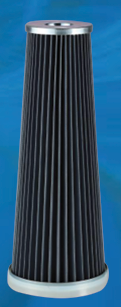

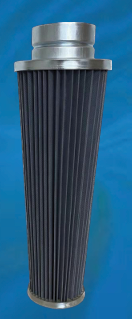

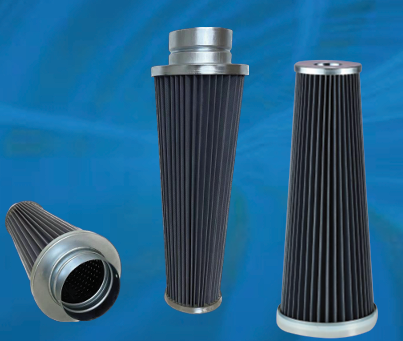

Vacuum Conveying System Filter Cartridge - PTS Series
The PTS-series filter cartridge is designed for powder conveying systems in batching applications. Constructed from polysiter fiber film coating material with matched precision, it ensures effective back-blow while efficiently intercepting dust particles. This prevents dust leakage that could compromise vacuum pump and equipment performance.
Key Features
- Carbon-based film coating material enhances filtration efficiency by trapping dust on the external surface, delivering significant back-blow effect and extending service life
- Exceptional particle capture capability with up to 99.99% interception efficiency
- Available in various filtration precisions to meet diverse requirements, with customization options for specific applications
Product Parameter
| Filter Cartridge Dimension |
OD*ID*H |
| Filter Material |
Carbon-based polyester film coating |
| Center Rod |
Carbon steel Galvanized/stainless steel |
| Enclosure |
Carbon steel Galvanized/stainless steel |
| End Caps |
Carbon steel Galvanized/stainless steel |
| Sealing Ring Material |
Silicone Rubber |
| Filtration Grade |
H13/ H14 |
| Maximum working pressure differential |
0.4Mpa |
| Maximum Use Temperature |
150 degrees |
The PTS Series vacuum conveying system filter cartridge is designed for efficient dust collection and material separation in pneumatic and vacuum conveying applications. Featuring a
pleated structure with high surface area, this cartridge ensures excellent particle retention while maintaining stable airflow and low pressure drop.

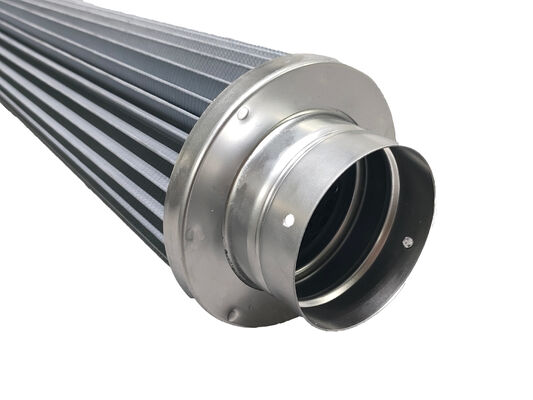

The black filter media is engineered for fine powder handling, effectively capturing airborne dust and preventing material loss during vacuum transfer processes. Its rigid metal end caps and reinforced core provide strong mechanical stability, making the cartridge suitable for continuous operation under negative pressure conditions.
PTS Series filter cartridges are widely used in pharmaceutical, chemical, food, battery, and powder processing industries, where clean conveying, equipment protection, and process safety are critical.
| Item |
Description |
| Product Series |
PTS Series |
| Application |
Vacuum conveying system |
| Filter Media |
Pleated synthetic fiber / polyester (black) |
| Filtration Rating |
1 μm – 20 μm (customizable) |
| Structure |
Pleated cartridge |
| End Caps |
Metal |
| Core |
Reinforced inner support |
| Operating Mode |
Negative pressure (vacuum) |
| Cleaning Method |
Pulse-jet / air blow cleaning |
| Applications |
Pharmaceutical, chemical, food, battery, powder conveying |
Pullner Laboratory:
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.
2. Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.
3. Q: Can you make customized products?
A: Yes, of course. if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.
4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be customized.
5. Q: What's your MOQ?
A: Normally, 100PCS/item. Any trial order which is less than MOQ is warmly welcomed. If you have a trial order, please feel free to contact us so that we can make some shipping recommendation for you to save the cost based on the quantity you need.
6. Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together.
