70'' Power Plant Condensate Water Pleated Filter Cartridge with Polypropylene Media for High Flow Filtration

70'' Power Plant Condensate Water Pleated Filter Cartridge with Polypropylene Media for High Flow Filtration
70'' Power Plant Condensate Water Pleated Filter Cartridge with Polypropylene Media for High Flow Filtration
70'' Power Plant Condensate Water Pleated Filter Cartridge with Polypropylene Media for High Flow Filtration 70'' Power Plant Condensate Water Pleated Filter Cartridge with Polypropylene Media for High Flow Filtration 70'' Power Plant Condensate Water Pleated Filter Cartridge with Polypropylene Media for High Flow Filtration 70'' Power Plant Condensate Water Pleated Filter Cartridge with Polypropylene Media for High Flow Filtration 70'' Power Plant Condensate Water Pleated Filter Cartridge with Polypropylene Media for High Flow Filtration 70'' Power Plant Condensate Water Pleated Filter Cartridge with Polypropylene Media for High Flow Filtration 70'' Power Plant Condensate Water Pleated Filter Cartridge with Polypropylene Media for High Flow Filtration 70'' Power Plant Condensate Water Pleated Filter Cartridge with Polypropylene Media for High Flow Filtration

Large Image :  70'' Power Plant Condensate Water Pleated Filter Cartridge with Polypropylene Media for High Flow Filtration

Product Details:
Place of Origin: SHANGHAI,CHINA
Brand Name: PULLNER
Certification: ISO9001/ISO45001/ISO14001/FDA
Model Number: PHFZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 10 work days
Payment Terms: L/C,D/A,D/P,Western Union,T/T
Supply Ability: 150 PCS per day
Contact Now

70'' Power Plant Condensate Water Pleated Filter Cartridge with Polypropylene Media for High Flow Filtration

Description
Highlight:

70'' Power Plant Condensate Water Pleated Filter Cartridge

70" Power Plant Condensate Water Pleated Filter Cartridge
Product Specifications
Series Media Micron Length Structure Connection Thread End Thread
PHFZ PP=Polypropylene 0100=1.0μm
0400=4.0μm
1000=10μm		 60=60"
70=70"		 I=7Part(φ69)
II=4+3(φ65)
III=3+1(φ69)		 Z1=1 1/2"-12
Z2=M33*1.5		 W1=M8
W2=M10
W3=M6
W4=3/8
Technical Specifications
Filter Media Polypropylene (PP)
Cage/Core/End cap Polypropylene (PP)
Accessories (nut, screw) SS304
Maximum Operating Temperature 85℃
Maximum Operating Differential Pressure 3.0bar/65℃
Filtration Area 6.5m²
Flow Rate 3.5-4.5m³/h (Design)
3.9m³/h (Recommend)
Inlet water quality <2000ppb
Flow Rate 2.2-2.8m³/h (Design)
2.5m³/h (Recommend)
Inlet Water Quality (Recommend) <1000ppb

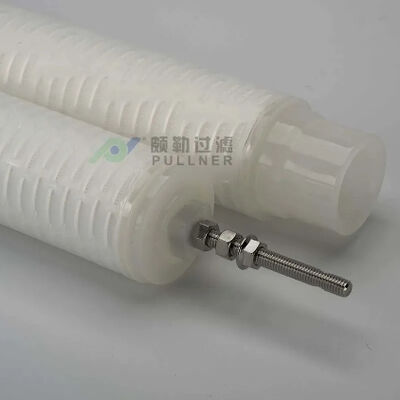

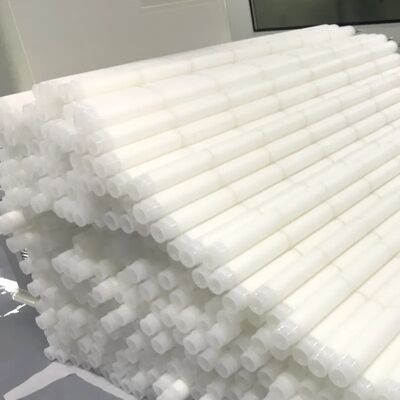

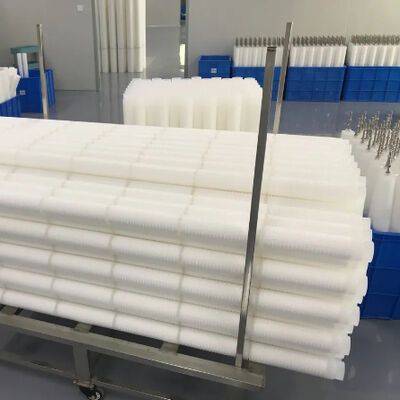

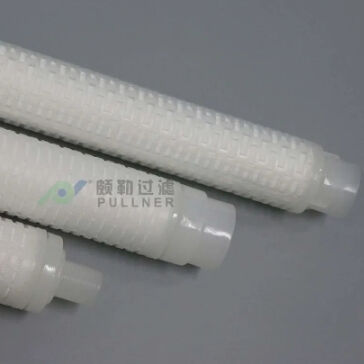

Product Images
70'' Power Plant Condensate Water Pleated Filter Cartridge with Polypropylene Media for High Flow Filtration 0 70'' Power Plant Condensate Water Pleated Filter Cartridge with Polypropylene Media for High Flow Filtration 1 70'' Power Plant Condensate Water Pleated Filter Cartridge with Polypropylene Media for High Flow Filtration 2 70'' Power Plant Condensate Water Pleated Filter Cartridge with Polypropylene Media for High Flow Filtration 3
Frequently Asked Questions
Q1: What is your brand name?
A1: Our brand name is PULLNER.
Q2: What is the model number of your High Flow Filter Cartridge?
A2: The model number of our High Flow Filter Cartridge is PHFZ.
Q3: Where is your High Flow Filter Cartridge manufactured?
A3: Our High Flow Filter Cartridge is manufactured in China, Shanghai.
Q4: What kind of filtration performance can your High Flow Filter Cartridge provide?
A4: Our High Flow Filter Cartridge can provide high filtration efficiency, low initial pressure drop, and long service life.
Q5: What are the advantages of your High Flow Filter Cartridge?
A5: Our High Flow Filter Cartridge has the advantages of high filtration accuracy, high dirt-holding capacity, and low cost.
