20 Inches PRS Series Capsule Filter for Ultra-High Flow Lithium Battery Slurry Filtration

Large Image : 20 Inches PRS Series Capsule Filter for Ultra-High Flow Lithium Battery Slurry Filtration

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	PULLNER
Certification:	ISO45001/14001/9001
Model Number:	PRS

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiable
Packaging Details:	Carton Box after Plastic bag
Delivery Time:	10-15 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	100PCS Per Week

Contact Now

20 Inches PRS Series Capsule Filter for Ultra-High Flow Lithium Battery Slurry Filtration

Description

Highlight:

7 Built-in Wound Filter Cores

Ultra High Flow For High-Speed Coating

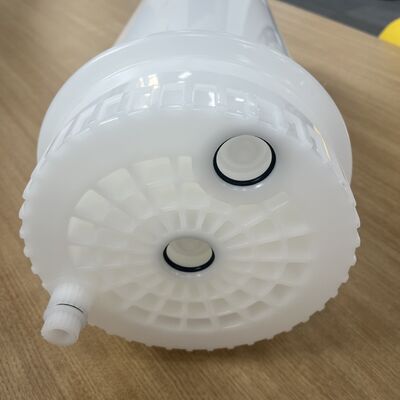

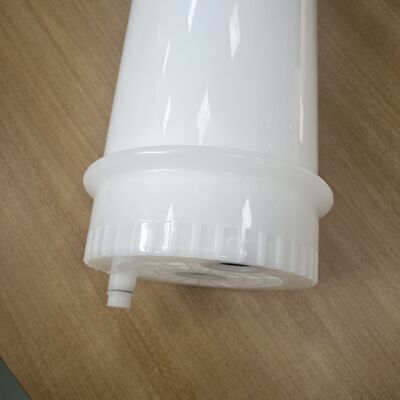

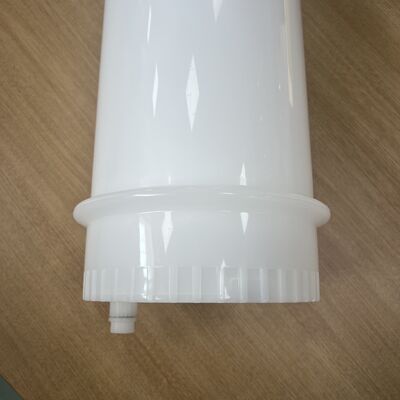

Bottom Drain Outlet For Liquid Recycling

PRS series filter cartridge

The PRS series integrated filter cartridge is engineered for ultra-high flow applications, making it ideal for high-speed coating production lines. This advanced design incorporates seven wound filter cores that significantly extend service life and reduce replacement frequency, meeting the rigorous demands of high-speed coating processes. The bottom features a specialized drain outlet for efficient liquid recovery and reuse.

Application Fields
Slurry filtration
Coating liquid filtration
Colloidal product filtration
Filtration of liquids containing toxic or hazardous substances

Product Model	PRS
Filter Cartridge Length	10inches,20inches
Outer Diameter	250mm
Enclosure Material	PP
Media Material	PP
Exhaust valve thread model	1/4" NPT
Design pressure	0.8Mpa
Maximum working pressure differential	0.4Mpa@20℃
Highest working temperature	80℃

Series	Length	Micron		O-ring
PRS	10=10" 20=20''	0500=5μm 1000=10μm 1500=15μm 3000=30μm 5000=50μm 7500=75μm	100H=100μm 120H=120μm 150H=150μm 200H=200μm 250H=250μm 300H=300μm	E=EPDM

Certifications

FAQ

Q1: Who is the manufacturer and brand of the filter cartridges?
A1: Shanghai Pullner Filtration Technology Co., Ltd.

Q2: Can you provide samples?
A2: We offer 1–2 free samples. Buyers only need to cover the shipping cost.

Q3: Is the filtration accuracy nominal or absolute?
A3: Our standard products use nominal rating. However, we can customize absolute-rated filters based on your application requirements.

Q4: Which brands can your filters replace?
A4: Our filters can be used as replacements for major brands such as 3M, PARKER, GARVER, and others.
