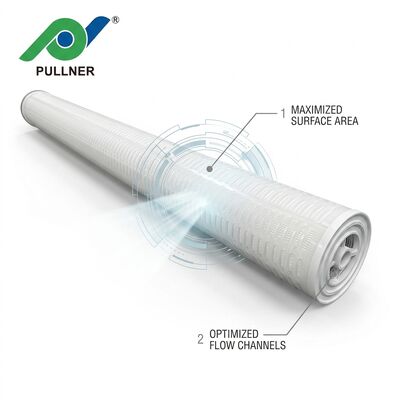

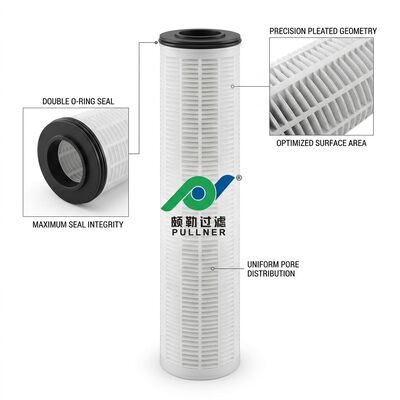

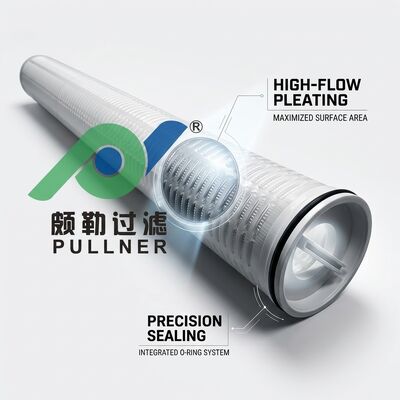

Large Capacity 60 Inch High Flow Filter Cartridge 110m3 per Hour for Power Plant Condensate

The PHFL-60 is a heavy-duty 60-inch (1524mm) large capacity high flow filter cartridge engineered specifically for high-volume industrial water treatment applications, most notably power plant condensate polishing systems where sustained flow rates of up to 110 cubic meters per hour per single cartridge are required. Featuring a 6-inch (152mm) outer diameter and advanced deep pleated polypropylene filter media, the PHFL-60 combines exceptional dirt holding capacity with industry-leading flow characteristics, enabling filtration system designs that are 50 percent smaller in physical footprint compared to conventional cartridge-based configurations of equivalent throughput. The integral one-piece outer cage, constructed without seams or joints across the full 60-inch length, provides the structural rigidity necessary to maintain filtration integrity under the demanding cyclic pressure conditions typical of power generation condensate loops.

Inside-to-outside flow direction is a defining characteristic of the PHFL-60 design, ensuring that all captured particulate matter remains securely entrained within the depth filter matrix regardless of process flow variations, pressure spikes, or sudden flow reversals. Gradient aperture technology is incorporated throughout the fiber media, with pore size distribution that decreases progressively along the radial flow path from the inner core to the outer diameter. This multi-layer interception mechanism enables the cartridge to sequentially trap larger particles in the outer layers while finer particles are captured in the denser inner layers, dramatically improving overall dirt loading capacity and extending operational service intervals between cartridge changeouts. Every structural connection point in the PHFL-60 is formed through precision thermal welding, eliminating any possibility of adhesive leaching or extractable contamination that could compromise condensate water purity.

• 110 Cubic Meters per Hour Flow Rate: Single cartridge delivers up to 110 m³/h flow capacity at 60-inch length, substantially reducing the number of filter housings and cartridges required for large-scale industrial water treatment installations.
• Extended 60-Inch Service Length: The 1524mm cartridge length maximizes media surface area utilization within standard large-diameter filter housings, extending the interval between cartridge changeouts and reducing total lifecycle operating costs.
• Gradient Aperture Depth Media: Progressively finer pore structure along the flow direction provides layered interception of particles across multiple size ranges, achieving superior dirt holding capacity compared to uniform pore size filter media configurations.
• Thermal Welded Construction: All end cap, support, and drainage layer connections are permanently bonded through thermal fusion without adhesives, ensuring zero extractable contamination and maintaining structural integrity at sustained operating temperatures up to 82 degrees Celsius.
• One-Piece 60-Inch Outer Cage: The seamless full-length outer support structure withstands adult body weight without deformation, enabling reliable operation at differential pressures up to 3.44 bar without cartridge collapse or media migration.
• Verified 99.8 Percent Filtration Efficiency: Each production batch is statistically sampled and tested to confirm particle removal efficiency at the specified micron rating, providing documented performance assurance for critical condensate polishing applications.
• 50 Percent Smaller System Footprint: The 6-inch large diameter design concentrates high flow capacity into fewer cartridges, reducing filter housing quantity, pipework complexity, and overall installation space requirements by half versus traditional 2.5-inch cartridge arrangements.

The PHFL-60 is purpose-engineered for power plant condensate polishing systems where large-volume, high-purity water filtration is essential for protecting downstream equipment including steam generators, heat exchangers, and boiler feed circuits from particulate-induced corrosion and deposition. Beyond power generation, this large capacity cartridge delivers exceptional performance in industrial process water treatment across petrochemical refining operations, chilled water and cooling tower side-stream filtration, brine filtration in chemical manufacturing, and wastewater treatment plants handling high daily throughput volumes. The all-polypropylene construction with thermal weld assembly ensures broad chemical compatibility and zero extractables, meeting the stringent water quality requirements of food and beverage process water, pharmaceutical purified water systems, and microelectronics ultrapure water production where even trace levels of organic contamination are unacceptable.

Each PHFL-60 cartridge is individually sealed in a clean poly bag and packed 4 pieces per heavy-duty export-grade double-wall corrugated carton box with internal protective dividers to prevent transit damage. Pullner maintains a comprehensive quality management system certified to ISO 9001:2015, with every production lot subjected to dimensional conformance verification, visual defect inspection under standardized lighting conditions, bubble point integrity testing, and statistical sampling for particle removal efficiency validation. Complete material certificates of conformance, batch traceability documentation, and independent third-party test reports are available upon request. Free product samples and dedicated technical application support are provided for qualification and pilot testing programs. Pullner manufactured products are backed by responsive after-sales service including online troubleshooting, on-site technical consultation, and expedited replacement logistics.
