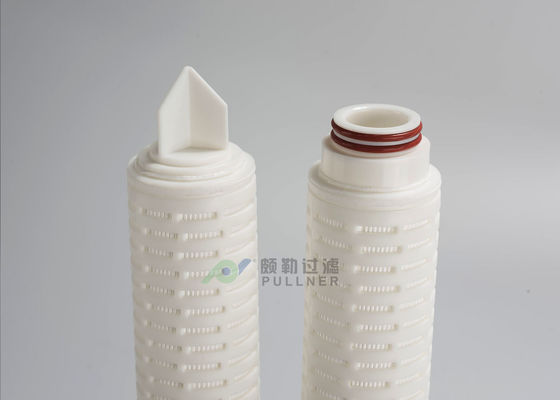

Benzene 0.45 Micron 222 PET Connector PBT Membrane Filter Cartridge

Basic Information
Place of Origin: China
Brand Name: PULLNER
Certification: FDA/ISO 9001/ISO 14001
Model Number: PBT
Minimum Order Quantity: 10
Price: USD + 100-200 + Piece
Packaging Details: Individual packaged in carton box after poly bag.
Delivery Time: 2 Month
Payment Terms: T/T,, Western Union, D/P, D/A, L/C, MoneyGram
Supply Ability: 50pcs per Week
Detail Information
Diameter: 69mm Length: 10"
Filter Medium: PBT Filtration Rating: 0.2um-50um
MOQ: 1 Piece Delivery Time: 1 Month
Sealing Material: Silicone/Viton/PEP/EPDM Max. Operating Temperature: 120℃
Max. Operating Different Pressure: 4bar/21℃
High Light:

PBT Membrane Filter Cartridge

,

69mm Membrane Filter Cartridge

,

222 0.45 Micron Filter Cartridge


Product Description



Ordering Information

PBT                              0020                         10                                 C1                                E

SeriesMicronLengthEnd Cap TypeSeal Material
PBT0020=0.2μm05=5"C1=226/SpearE=EPDM
 0045=0.45μm10=10"C3=222/SpearS=Silicone
 0100=1.0μm20=20"C5=222/FlatV=Viton
 0500=5.0μm30=30"C6=226/FlatP=FEP
 1000=10μm40=40"C9=DOE
 2500=25μm
 5000=50μm



PBT Polyester Membrane Filter Cartridge

The PBT series filter cartridge is made of all Polyester (PET) material, which can meet the precision filtration of benzene, toluene and other liquids containing aromatic hydrocarbon solvents. The Polyester material has good temperature and pressure resistance, can withstand 120℃ high temperature for a week, and 4 bar working pressure difference.



Performance

Filtration rating0.2μm, 0.45μm, 1μm, 5μm, 10μm, 25μm, 50μm
Maximum Operating Temperature120℃
Maximum Operating Differential Pressure

4bar/21℃

2.4bar/80℃


Material Construction

Filter mediaPolyester (PET)
Support/DrainagePolyester (PET)
Cage/Core/End CapsPolyester (PET)
Seal MaterialEPDM, Silicone, Viton, FEP



Chemical Compatibility

BenzeneRCCl4R
XyleneRTetrahydrofuranR
AcetoneRGasolineNR
TrichloroethyleneRAcidNR

NR:No Recommend R:Recommend
