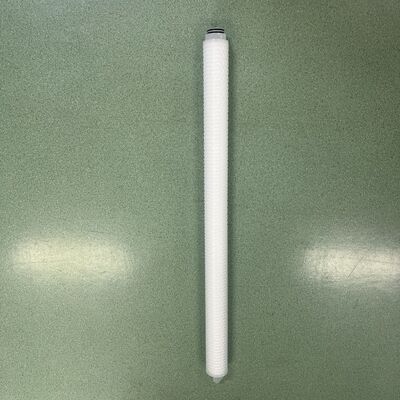

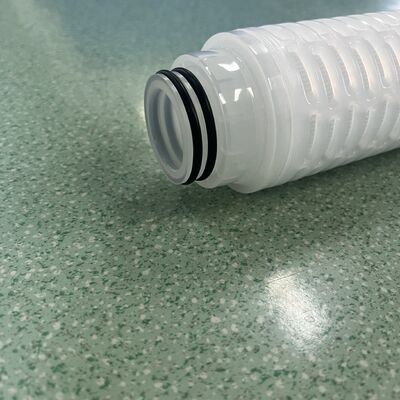

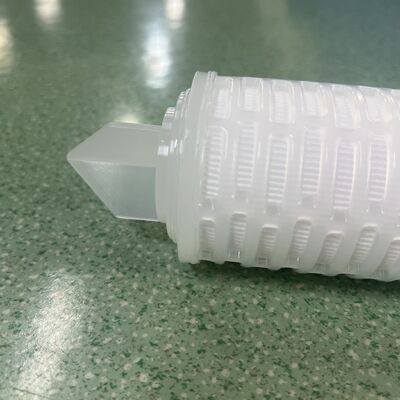

40inch Polypropylene Pleated Water Filter Cartridge with 226/Fin End Cap for High Flow Filtration

40inch Polypropylene Pleated Water Filter Cartridge with 226/Fin End Cap for High Flow Filtration
40inch Polypropylene Pleated Water Filter Cartridge with 226/Fin End Cap for High Flow Filtration
40inch Polypropylene Pleated Water Filter Cartridge with 226/Fin End Cap for High Flow Filtration 40inch Polypropylene Pleated Water Filter Cartridge with 226/Fin End Cap for High Flow Filtration 40inch Polypropylene Pleated Water Filter Cartridge with 226/Fin End Cap for High Flow Filtration 40inch Polypropylene Pleated Water Filter Cartridge with 226/Fin End Cap for High Flow Filtration 40inch Polypropylene Pleated Water Filter Cartridge with 226/Fin End Cap for High Flow Filtration 40inch Polypropylene Pleated Water Filter Cartridge with 226/Fin End Cap for High Flow Filtration

Large Image :  40inch Polypropylene Pleated Water Filter Cartridge with 226/Fin End Cap for High Flow Filtration

Product Details:
Place of Origin: Shanghai, China
Brand Name: PULLNER
Certification: FDA、ISO
Model Number: PLZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Indiviedual packing in carton box after poly bag.
Delivery Time: 3-5 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1500pcs per week
Contact Now

40inch Polypropylene Pleated Water Filter Cartridge with 226/Fin End Cap for High Flow Filtration

Description
Highlight:

high and stable filtration efficiency

,

Polypropylene Pleated Water Filter Cartridges

,

providing micron rating from 0.1μm to 60μm

40inch Polypropylene Pleated Water Filter Cartridges with 226/Fin End Cap Type
Product Overview

PP Pleated OD 68.5mm Water Pleated Filter Cartridge designed for high-performance filtration applications across various industries.

40inch Polypropylene Pleated Water Filter Cartridge with 226/Fin End Cap for High Flow Filtration 0
Applications
  • Food and beverage: beer, wine filtration; juice and soda filtration; oral liquid filtration; additives, oil filtration
  • Water treatment: urban water supply, industrial water filtration; power plant condensate filtration
  • Metal processing: cutting fluid and coolant filtration; lubricating oil filtration
  • Fine chemicals: catalyst filtration; filtration of cosmetics raw materials and finished products; chemical auxiliary filtration
  • Petrochemical industry: aviation kerosene filtration; diesel and fuel filtration
Technical Specifications
Item Technical Parameters
Filter medium Polypropylene (PP)
Support/Drainage Polypropylene (PP)
Core/Cage/End Cap Polypropylene (PP)
Outside diameter 2.7" (68.5mm)
Length 10", 20", 30", 40"
Micron 0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um
Filtration area 0.4-0.7m²
Max. operating differential pressure ΔP≤0.35MPa at 25℃
Max. operating differential pressure (reverse direction) ΔP≤0.28MPa at 60℃
Max. operating temperature 80℃ (Stainless steel support is recommended for temperature exceeds 50℃)
Sterilization temperature 30 minute cycles @121℃
Max. operating pressure 4bar/21℃, 2.4bar/80℃
Material Construction
  • Filter media: Polypropylene (PP)
  • Support/Drainage: Polypropylene (PP)
  • Cage/Core/End caps: Polypropylene (PP)
  • Seal material: Silicone, NBR, Vit, EPDM
Manufacturer Profile

Shanghai Pullner Filtration Technology Co., LTD.

Established: 2013

Specialty: PP pleated filter cartridges, melt-blown filter cartridges, string wound filter cartridges, stainless steel filter cartridges, etc.

Domestic Offices in China

Beijing, Guangzhou, Fujian, Sichuan, Guangxi, Yunnan, Xinjiang, Inner Mongolia, Shaanxi, Northeast China

Global Branches and Offices

UAE (Dubai), Malaysia (Kuala Lumpur), Russia (Moscow)

40inch Polypropylene Pleated Water Filter Cartridge with 226/Fin End Cap for High Flow Filtration 1 40inch Polypropylene Pleated Water Filter Cartridge with 226/Fin End Cap for High Flow Filtration 2 40inch Polypropylene Pleated Water Filter Cartridge with 226/Fin End Cap for High Flow Filtration 3
Certifications
40inch Polypropylene Pleated Water Filter Cartridge with 226/Fin End Cap for High Flow Filtration 4
Frequently Asked Questions
Q1: What is the brand name of this product?
A: The brand name is PULLNER.
Q2: What is the model number of this product?
A: The model number is PLZ.
Q3: Where is this product manufactured?
A: This product is made in China.
Q4: What is the main function of this product?
A: The main function of this product is to filter beverages.
Q5: What is the recommended usage time for this product?
A: The recommended usage time for this product is 6-12 months.
