The PBT series filter cartridge is constructed entirely from Polyester (PET) material, specifically engineered for precision filtration of liquids containing aromatic hydrocarbon solvents such as benzene and toluen-e.
Ordering Information
PBT 0020 10 C1 E
| Series |
Micron |
Length |
End Cap Type |
Seal Material |
| PBT |
0020 |
=0.2μm |
05 |
=5" |
C1 |
=226/Spear |
E |
=EPDM |
|
0045 |
=0.45μm |
10 |
=10" |
C3 |
=222/Spear |
S |
=Silicone |
|
0100 |
=1.0μm |
20 |
=20" |
C5 |
=222/Flat |
V |
=Viton |
|
0500 |
=5.0μm |
30 |
=30" |
C6 |
=226/Flat |
P |
=FEP |
|
1000 |
=10μm |
40 |
=40" |
C9 |
=DOE |
|
|
|
2500 |
=25μm |
|
|
|
|
|
|
|
5000 |
=50μm |
|
|
|
|
|
|

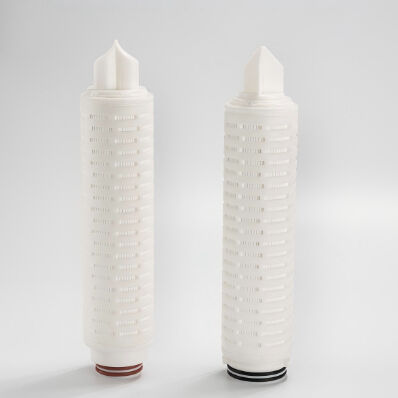

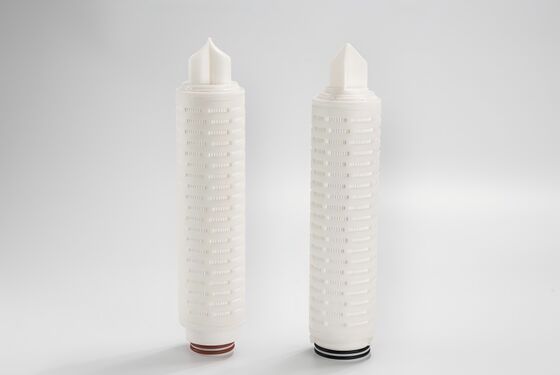

PBT Polyester Membrane Filter Cartridge
The PBT series filter cartridge is made of all Polyester (PET) material, which can meet the precision filtration of benzene, toluen-e and other liquids containing aromatic hydrocarbon solvents. The Polyester material has good temperature and pressure resistance, can withstand 120℃ high temperature for a week, and 4 bar working pressure difference.
Performance
| Filtration rating |
0.2μm, 0.45μm, 1μm, 5μm, 10μm, 25μm, 50μm |
| Maximum Operating Temperature |
120℃ |
| Maximum Operating Differential Pressure |
4bar/21℃
2.4bar/80℃
|
Material Construction
| Filter media |
Polyester (PET) |
| Support/Drainage |
Polyester (PET) |
| Cage/Core/End Caps |
Polyester (PET) |
| Seal Material |
EPDM, Silicone, Viton, FEP |
Chemical Compatibility
| Benzene |
R |
CCl4 |
R |
| Xylene |
R |
Tetrahydrofuran |
R |
| Aceton(e) |
R |
Gasoline |
NR |
| Trichloroethylene |
R |
Acid |
NR |
NR:No Recommend R:Recommend
