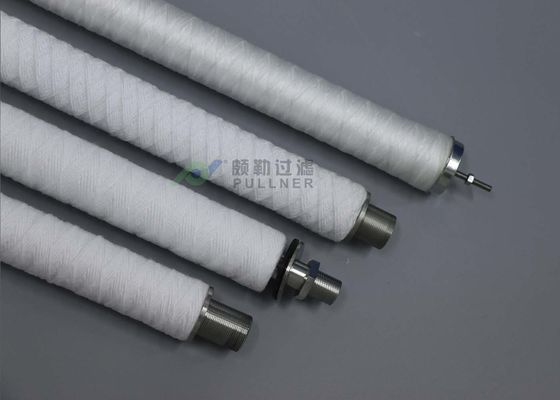

Suspended Solids 1um M8 String Wound Condensate Polishing Filter

Basic Information
Place of Origin: Shanghai
Brand Name: PULLNER
Certification: ISO 9001 ISO18000
Model Number: PHFX
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Customized wooden carton after poly bag. 200pcs per carton.
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1500pcs per month
Detail Information
Length: 70"(1778mm) Filter Medium: POLYPROPYLENE, COTTON, GLASS FIBER
Filtration Rating: 1um10um Recommend Flow Rate: 2.2-2.8 M³/h
Support: 304/316 Bottom Thread: M8 M10 M6
High Light:

M8 Condensate Polishing Filter

,

1um Condensate Polishing Filter

,

M8 string wound filter cartridge


Product Description

Remove suspended solids in the fluid String wound filter cartridge use in power plants



General Description

PHFX Series String WIund Filter Cartridge is a wounded type depth filter. use of high-performandce fiber, according to a specific process, tightly wrapped on a porous skeleton, put an end to the fiber deformation and fiber shedding, It has excellent high dirt holding capacity and wide chemical compatibility, are a good choice for prefiltration/clarification and the protection of membrane filters to expand their service life. are widely used in power station condensate water filtration.



Performance Specifications



Dimensions

OD 50mm, 60mm; Customized on request
ID 25mm, 28mm, 30mm
Length 70"(1778mm), 60" (1524mm); Customized on request



Parts Material

Filter Medium Polypropylene, Cotton, Glass Fiber
Support Core Stainless steel 304/316L



Filter Performance

Micron 1um, 5um (operating filters), 10um(start-up filters)
Max. operating temperature 85℃
Max. operating differential pressure 2.45Bar
Design Flow Rate 2.9m³/h-3.2m³/h
Connection Type Thread
Connection thread size M33×1.5, M33×2, G1", 1 3/16〃-24 BSW
Screw size M6, M8, M10



Features and Benefits

* Length up to 70inch (1778mm), suitable for high flow/high contaminant applications

* High mechnical strength, no distortion happen even in critial process conditions

* Directly installed into existed housings, no need for any changes



Applications

Power plant water treatment

Steel mill water treatment

Sea water desalination
