Product Details:
|
| Filtration Rating: | 0.22um | Max. Operating Temperature: | 80℃ |
|---|---|---|---|
| Product Name: | PES Pleated Cartridge Filter | Length: | 10" |
| Filter Media: | PES | OD: | 2.7" (69mm) |
| Interception Rate: | 100%, 107CFΜ/cm² | ||
| Highlight: | PES pleated membrane filter cartridge,0.22um pleated membrane filter cartridge,PES ro membrane cartridge |
||

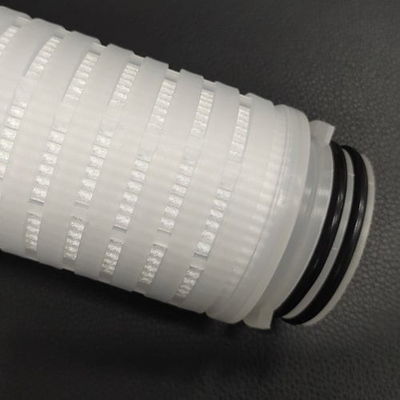

Food and beverage PES Pleated Membrane Filter Cartridge 0.22um 10" 100% Integrity Tested
General Description
The PES filter element is made of imported hydrophilic asymmetric PES membrane and imported non-woven fabric and mesh as the support layers. Its asymmetric membrane structure enables the filter to greatly extend the service life of the filter while ensuring the filtration efficiency, thereby effectively saving the filtration cost of the system.
Application
Injection water, blood products, sterilizing and filtering of medicinal solvents;
Cleaning and disinfecting solution;
Sterilization filtration of biological products;
Sterilization filtration of beer, wine, beverages, etc;
Eye drop filtration.
Features
1. Excellent performance of chemical compatibility;
2. Hydrophilic membrane with high flow;
3. Non-fiber releasing according to pharmaceutics and food industry requirements;
4. Experiencing 100% integrity tested;
5. Flushed with ultrapure water;
6. FDA compliance material.
Material of Constructions
| Filter Medium | PES |
| Support layer | PP |
| Cage/Core/End cap | PP |
| Seal Material |
Silicone, EPDM, NBR, Viton, Teflon, E-fkm |
Specification
Dimensions
|
Outer Diameter |
2.7" (69mm) |
|
Length |
10", 20", 30", 40" |
Performance
|
Removal rating |
0.1um, 0.22um, 0.45um, 0.65um |
|
Max. operating temperature |
80℃ |
|
Max. operating pressure |
4.2 Bar @ 25℃ |
|
Max. operating pressure (Reverse Direction) |
2.1 Bar @ 25℃ |
|
Max. temperature sterilization |
20 times, 30minutes cycles at 121℃ |
