Product Details:
|
| OD: | 2.7"(68.5mm) | Length: | 10"(254mm) |
|---|---|---|---|
| Filtration Rating: | 0.1um, 0.22um, 0.45um, 1um, 2um, 5um, 10um, 20um, 30um, 50um, 60um | Flow Rate: | 1.2m³/h/10" |
| Sample: | Free | Filter Area: | 0.4-0.7㎡ |
| Filter Medium: | PP | Material: | PP |
| Grade: | Sterilizing Grade | Product Type: | Cartridge |
| Unit Per Case: | 1,6 | Micron: | 0.2μm ABS, @95%. |
| Brand: | Pullner | Application: | Sterilizing Grade Filtration Liquid And Gas |
| Filter Type: | Surface | ||
| High Light: | Microelectronics Polypropylene Membrane Filters,Pleated Ro Membrane Cartridge,Membrane Replacement Filter Cartridge |
||

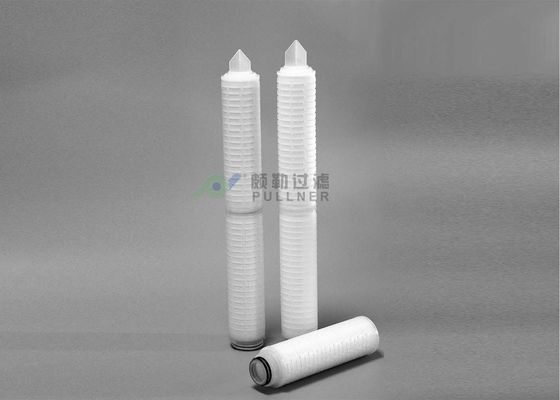

Microelectronics PP Pleated Filter Cartridge FDA Certificate
Description:
PP Pleated filter cartridge are validated, 0.2 μm sterilizing grade filters with a unique combination of PULLNER filter construction and built-in prefiltration to give longer filter life and lower filtration costs. The filters are suitable for sterile filtration of a wide range of fluids including buffers, biologival fluids, tissus culture media, ophthalmic products and many others.
Features and Benefits:
1. Excellent Chemical compatibility, high flow, low differential pressure, long service life;
2. Depth pleated membrane, can meet various application areas;
3. Graded pore density provide high dirt holding capacity;
4. Common cleaning methods available, or use high-pressure disinfection cabinet and steam sterilization;
5. Absolute rating, bubble point test compliance with GMP certification;
6. Strict quality control system, complete production process flow;
Specifications
|
Item |
Technical Parameters |
|
Micron |
0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um |
|
Filtration area |
0.4-0.7m² |
|
Filter medium |
Polypropylene (PP) |
|
Support/Drainage |
Polypropylene (PP) |
|
Core/Cage/End Cap |
Polypropylene (PP) |
|
Outside diameter |
2.7" (68.5mm) |
|
Max. operating differential pressure |
ΔP≤0.35MPa at 25℃ |
|
Max. operating differential pressure (reverse direction) |
ΔP≤0.28MPa at 60℃ |
|
Max. operating temperature |
80℃(Stainless steel support is recommended for temperature exceeds 50℃) |
|
Sterilization temperature |
30 minute cycles @121℃ |
|
Max. operating pressure |
4.0bar/21℃ |
|
2.4bar/80℃ |
Product Details:
Our Pleated filter cartridge is made of 100% polypropylene. this product is appropriate for use in a wide range of applications including: food and beverage, industrial and electronics. The filter media is constructed from contimuous micro-fibers that provie a uniform matrix.
Applications:
General Purpose: RO Pre-filtration, all kinds process water purification
Industrial filtration: Process fluid, process water, condensed water, coolant, wastewater treatment;
Food and Beverage: Process water;
Petrochemical: Various solvents, chilled water, brine filtration
Power Plant: supplementary water, condensate water, coolant
FAQ
Q1. Are you a manufacturer?
Yes, we are a high-tech enterprise which with 20 years of experience in developing and manufacturing various filters and purification equipment.
Q2. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% rigorous test before delivery.
Q8. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q9. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Why choose us?
1. Customized is also available.
2. Prompt delivery of the sample and bulk production.
3. Good quality control procedure and advanced production line.
4. Professional experience on the filters.
5. Good quality and competitive price.
6. Long and excellent after-sales service.
Features and Benefits:
1. Excellent Chemical compatibility, high flow, low differential pressure, long service life;
2. Depth pleated membrane, can meet various application areas;
3. Graded pore density provide high dirt holding capacity;
4. Common cleaning methods available, or use high-pressure disinfection cabinet and steam sterilization;
5. Absolute rating, bubble point test compliance with GMP certification;
6. Strict quality control system, complete production process flow;
