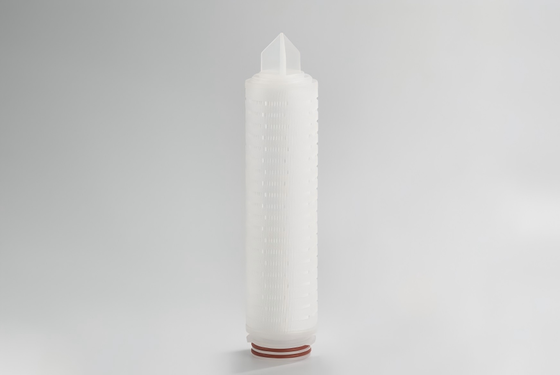

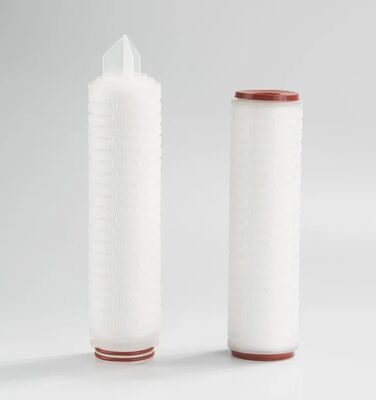

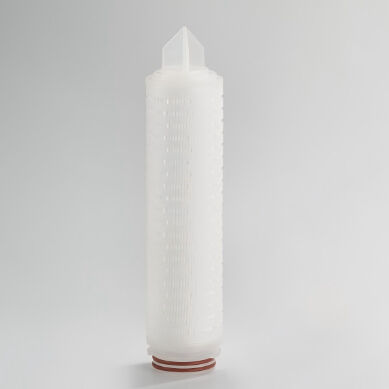

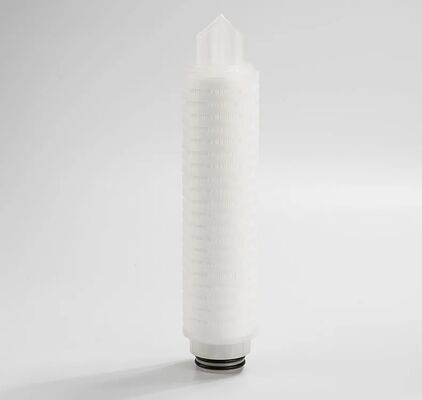

The HFPS series filter cartridge features an imported asymmetric Polyethersulfone (PES) membrane with natural hydrophilicity. This high-performance filtration solution delivers:
Designed to maintain superior effluent quality, the HFPS series provides rigorous contamination control for pure water applications across industrial and manufacturing environments.
Material Constructions
| Filter Media |
Asymmetric Polyethersulfone (PES) membrane |
| Support/Drainage |
Polypropylene (PP) |
| Cage/Core/End Cap |
Polypropylene (PP) |
Operating Characteristic
| Maximum Operating Temperature |
80℃ |
| Maximum Operating Difference Pressure |
4bar/21℃ |
|
2.4bar/80℃ |
Filtration rating and Area
| Filtration rating (μm) |
Filtration Area(㎡/10") |
| 0.02,0.03,0.05,0.1 |
1.02 |
| 0.1,0.22,0.45,0.65,1.2 |
0.66 |
Chemical Compatibility
| Benzene |
NR |
Carbon tetrachloride |
GNR |
| A cetone |
GNR |
Alcohol |
GR |
| CYC |
GNR |
1NHCL |
GR |
| Dimethylsulfoxide |
NR |
6NHCL |
GR |
NR:No Recommend GR:General Recommend
GNR:General No Recommend
Ordering Information
HFPS 0022 10 C1 E
| Series |
Micron |
Length |
End Cap Type |
Seal Material |
| HFPS |
0002 |
=0.02μm |
05 |
=5" |
C1 |
=226/Spear |
E |
=EPDM |
|
0003 |
=0.03μm |
10 |
=10" |
C3 |
=222/Spear |
S |
=Silicone |
|
0005 |
=0.05μm |
20 |
=20" |
C5 |
=222/Flat |
V |
=Viton |
|
0010 |
=0.1μm |
30 |
=30" |
C6 |
=226/Flat |
P |
=FEP |
|
0022 |
=0.22μm |
40 |
=40" |
C9 |
=DOE |
|
|
|
0045 |
=0.45μm |
|
|
|
|
|
|
|
0065 |
=0.65μm |
|
|
|
|
|
|
|
0120 |
=1.2μm |
|
|
|
|
|
|
Applications:
1. General purpose: RO Prefiltration, all kinds process water purification;
2. Industrial: Water pretreatment of power plant, deionized water pre-filtration, and filtration of plating solution
3. Food and Beverage: Alcohol, Beverage, Pure water.
4. Chemical / petrochemical: Filtration of various acids, alkalis, solvents and kinds of chemicals;
5. Biopharmaceutical: Filtration of pharmaceutical, biotechnology and plasma products.
Features and Benefits:
* Excellent Chemical compatibility, high flow, low differential pressure, long service life;
* Depth pleated membrane, can meet various application areas;
* Graded pore density provide high dirt holding capacity;
* Common cleaning methods available, or use high-pressure disinfection cabinet and steam sterilization;
* Absolute rating, bubble point test compliance with GMP certification;
* Strict quality control system, complete production process flow;
* Short delivery period, general 7 days;
* Flexible payment method: T/T, L/C, West Union, Paypal;
* Free technical support;
* MOQ 1 piece;
* FREE sample.
