130mm Outer Diameter Pleated Filter Cartridge with High Flow 200L/min and 2m2 Filtration Area

130mm Outer Diameter Pleated Filter Cartridge with High Flow 200L/min and 2m2 Filtration Area
130mm Outer Diameter Pleated Filter Cartridge with High Flow 200L/min and 2m2 Filtration Area
130mm Outer Diameter Pleated Filter Cartridge with High Flow 200L/min and 2m2 Filtration Area 130mm Outer Diameter Pleated Filter Cartridge with High Flow 200L/min and 2m2 Filtration Area 130mm Outer Diameter Pleated Filter Cartridge with High Flow 200L/min and 2m2 Filtration Area 130mm Outer Diameter Pleated Filter Cartridge with High Flow 200L/min and 2m2 Filtration Area 130mm Outer Diameter Pleated Filter Cartridge with High Flow 200L/min and 2m2 Filtration Area 130mm Outer Diameter Pleated Filter Cartridge with High Flow 200L/min and 2m2 Filtration Area

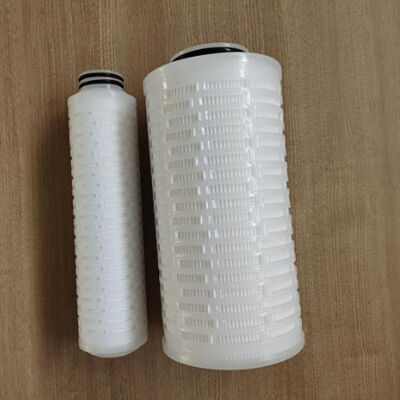

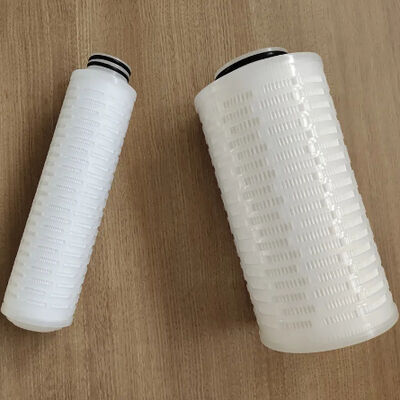

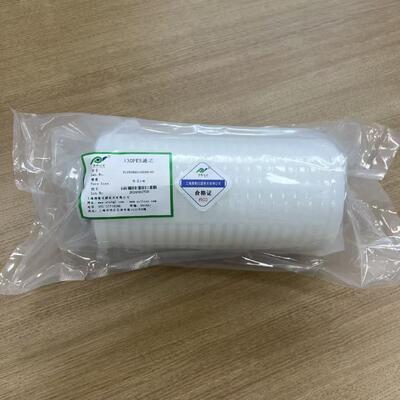

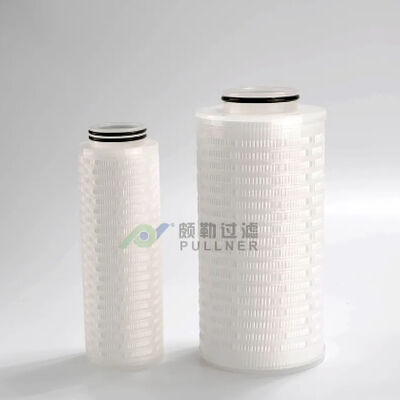

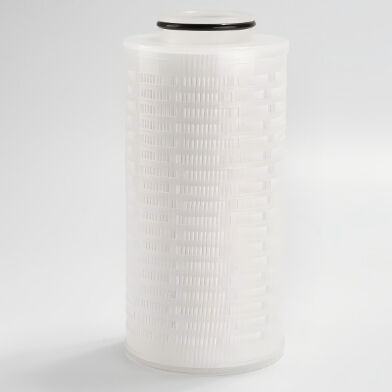

Large Image :  130mm Outer Diameter Pleated Filter Cartridge with High Flow 200L/min and 2m2 Filtration Area

Product Details:
Place of Origin: SHANGHAI,CHINA
Brand Name: PULLNER
Certification: ISO19001/ISO14001/ISO54001
Model Number: 130 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Individual packaged in carton box after poly bag
Delivery Time: 1 Month
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 50 PCS per month
Contact Now

130mm Outer Diameter Pleated Filter Cartridge with High Flow 200L/min and 2m2 Filtration Area

Description
Highlight:

130 Series Pleated Filter Cartridge Outer Diameter 130mm

130 Series Pleated Filter Cartridge - Outer Diameter 130mm

The 130mm High Generation Line Wet Process High Flow Membrane Filter Cartridge is engineered for applications requiring high flow rates. Capable of achieving flow requirements exceeding 200L/min, this filter cartridge features an optimized design that maximizes space efficiency in equipment layouts. With a single filter element filtration area exceeding 2m², it delivers exceptional high flow performance and superior dirt holding capacity, significantly reducing equipment downtime associated with filter cartridge replacements.

Product Specifications
Filter Media PFL: PTFE (Hydrophobic)
PFLH: PTFE (Hydrophilic)
EPS: PES
HPPV: PP
Cage/Core/End Caps Polypropylene (PP)
Seal Material EPDM, Silicone, V
Maximum Operating Temperature 80℃
Maximum Operating Pressure 4bar/21℃
2.4bar/80℃
Dissolution Content Less than 30mg/10"
Less than 0.25EU/ml/10"
Series Configuration Options
Series PFL Micron PFLH Micron EPS Micron HPPV Micron Length End Cap Type Seal Material
130 0.2μm 0.2μm 0.05μm 0.5μm 10" Single O-ring EPDM, Silicone, V
0.5μm 0.5μm 0.1μm 1.0μm
1.0μm 1.0μm 0.22μm 1.5μm
3.0μm 3.0μm 0.45μm 3.0μm
5.0μm 5.0μm 0.65μm 5.0μm
10μm 10μm 10μm 1.2μm



20μm
Manufacturer Profile
130mm Outer Diameter Pleated Filter Cartridge with High Flow 200L/min and 2m2 Filtration Area 0

Shanghai Pullner Filtration Technology Co., LTD.
Established: 2013
Specialty: PP pleated filter cartridges, melt-blown filter cartridges, string wound filter cartridges, stainless steel filter cartridges, and other filtration solutions.

Domestic Offices in China

Beijing, Guangzhou, Fujian, Sichuan, Guangxi, Yunnan, Xinjiang, Inner Mongolia, Shaanxi, Northeast China

Global Branches and Offices

UAE (Dubai), Malaysia (Kuala Lumpur), Russia (Moscow)

130mm Outer Diameter Pleated Filter Cartridge with High Flow 200L/min and 2m2 Filtration Area 1 130mm Outer Diameter Pleated Filter Cartridge with High Flow 200L/min and 2m2 Filtration Area 2
Quality Certification
130mm Outer Diameter Pleated Filter Cartridge with High Flow 200L/min and 2m2 Filtration Area 3 130mm Outer Diameter Pleated Filter Cartridge with High Flow 200L/min and 2m2 Filtration Area 4 130mm Outer Diameter Pleated Filter Cartridge with High Flow 200L/min and 2m2 Filtration Area 5
Frequently Asked Questions
What is the brand name of this product?
The brand name is PULLNER.
What is the model number of this product?
The model number is 130 Series.
Where is this product manufactured?
This product is made in China.
What is the main function of this product?
The main function of this product is to filter beverages.
What is the recommended usage time for this product?
The recommended usage time for this product is 6-12 months.
