10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications

10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications
10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications
10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications 10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications 10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications 10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications 10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications 10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications 10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications 10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications 10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications 10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications

Large Image :  10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications

Product Details:
Place of Origin: Shanghai,China
Brand Name: Pullner
Certification: ISO9001,ISO14001,ISO45001
Model Number: PHSW
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export standard packaging
Delivery Time: 15-25 work days
Payment Terms: ,L/C,D/A,D/P,T/T,Western Union
Supply Ability: 100 pcs per day
Contact Now

10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications

Description
Highlight:

316L Stainless Steel Filter Cartridge

,

High Temperature Resistance Sintered Mesh Filter

,

Corrosion Resistant High Flow Filter

Product Overview

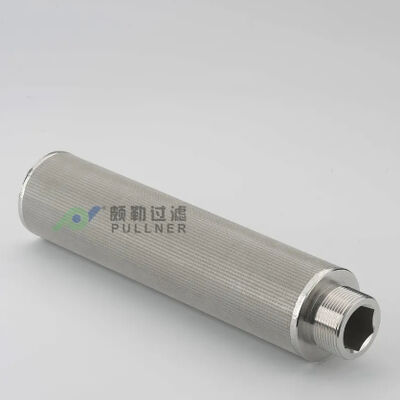

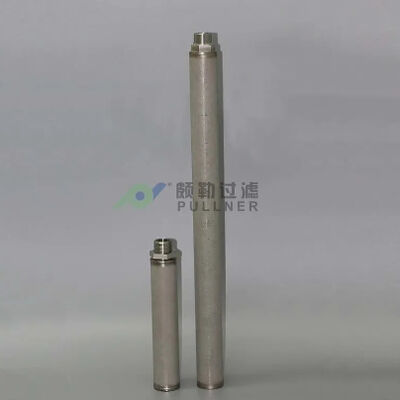

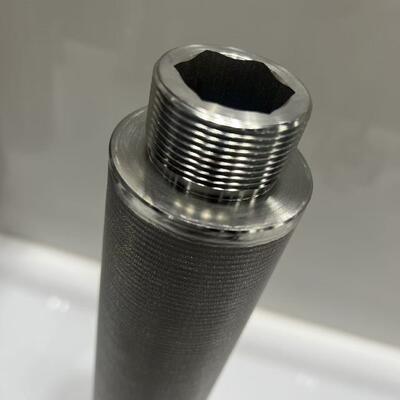

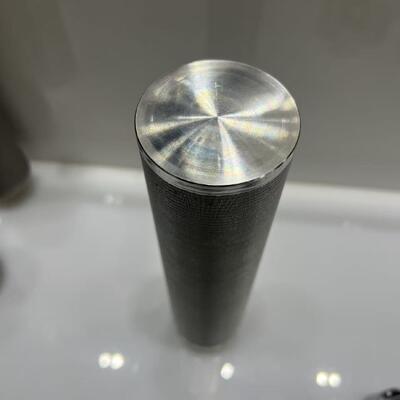

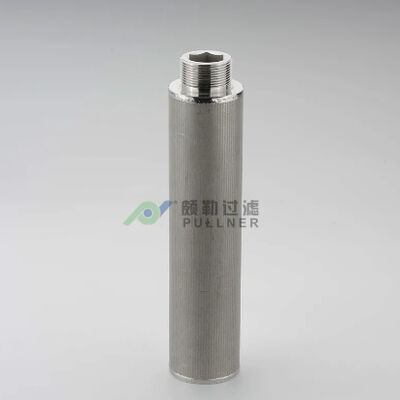

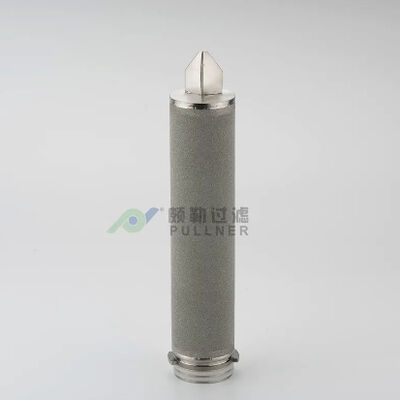

PHSW stainless steel multi-layer sintered mesh filter cartridge manufactured from 316L or 304 stainless steel mesh. Engineered for superior temperature, pressure and corrosion resistance with excellent backwash performance. An ideal replacement for titanium rod products, suitable for solid-liquid separation with rigid granular materials.

Applications
  • Petrochemical: Various solvents, chilled water, brine filtration
  • Water Treatment: Drinking water, commercial water treatment, seawater desalination RO pre-filtration
  • Industrial Filtration: Energy, coatings, graphite, petrochemical, electroplating, mining, machining, industrial water treatment
Features & Benefits
  • Uniform aperture distribution
  • All stainless steel construction
  • All-welded construction, no media loss
  • High-pressure backwash capability with excellent recoil effect
  • Multi-layer stainless steel sintered wire mesh
  • Exceptional corrosion resistance, high pressure and high temperature tolerance
Technical Specifications
Parameter Specification
Filter Media 316L/304 Stainless Steel
Cage/Core/End Cap 316L/304 Stainless Steel
Maximum Operating Temperature 480℃
Maximum Operating Differential Pressure 3 bar
Dimensions & Filter Area
OD Standard Length Filter Area
65mm
Customized on request		 5" (127mm) 0.024 m²
65mm
Customized on request		 10" (254mm) 0.048 m²
65mm
Customized on request		 20" (508mm) 0.096 m²
65mm
Customized on request		 30" (762mm) 0.14 m²
65mm
Customized on request		 40" (1016mm) 0.19 m²
Certifications
10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications 0
10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications 1
10inch 316L Stainless Steel Sintered Mesh Filter Cartridge with High Temperature and Corrosion Resistance for High Flow Applications 2

Frequently Asked Questions
Are you a trading company or a manufacturer?

We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide total filtration solutions with our many years of experience in the industry.

May I have samples?

Yes, sample cost can be refunded if you place formal orders in the future.

Can you make customized products?

Yes, we can manufacture customized products based on your detailed specifications or drawings. Our mission is to realize customer ideas and provide satisfactory solutions.

Can I use our own designed package?

Yes, size, color, logo and packaging style can all be customized to your requirements.
