60 inches PHFZ High Flow Filter Cartridge with Polypropylene Media for Condensate Polishing

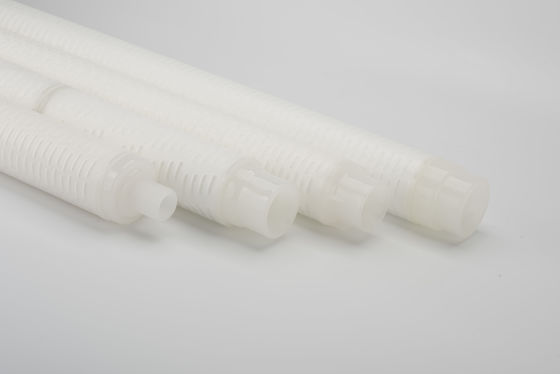

Large Image : 60 inches PHFZ High Flow Filter Cartridge with Polypropylene Media for Condensate Polishing

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Pullner
Certification:	ISO4500
Model Number:	PHFZ

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	negotiable
Packaging Details:	Export standard packaging
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000 pcs per week

Contact Now

60 inches PHFZ High Flow Filter Cartridge with Polypropylene Media for Condensate Polishing

Description

Highlight:

60 inches Condensate Polishing Filter

Polypropylene Media High Flow Filter Cartridge

High Flow Rate PHFZ Filter Cartridge

60 Inches PHFZ Power Plant Condensing Polishing Water Filter Cartridge

The High Flow Pleated PHZ Filter Cartridge is engineered for high-volume water filtration applications. Utilizing deep-pleated polypropylene (PP) or glass fiber media, this cartridge delivers exceptional high flow rates, low pressure drop, and extended service life.

Featuring 69Φ large diameter design with no center core and dedicated inside-to-outside flow direction, contaminants and particles are efficiently retained inside the cartridge. This design enhances maintenance efficiency and extends filtration cycles while reducing the number of cartridges and housing size required, significantly lowering capital investment, installation space, and labor costs.

Key Features & Benefits

High filtration area, high flow rate - Large effective filtration area provides low differential pressure and high throughput
High dirt-holding capacity, longer service life - Multi-layer gradient pore structure (deep media design) improves particle retention and dirt loading capacity, extending replacement intervals and reducing operating costs
Wide micron ratings and multiple lengths available - Micron ratings from 1 µm to 70 µm and lengths of 20" / 40" / 60" to match diverse filtration requirements

Applications

Water Treatment

Drinking water treatment
Commercial water filtration
RO pre-filtration for seawater desalination

Industrial Filtration

Energy, coatings, graphite
Petrochemical, electroplating
Mining, machining, industrial water treatment

Power Plant

Make-up water
Condensate water
Cooling water pre-filtration

Dimensions (Nominal)

Outer Diameter (OD): 69 Φ
Length: 20" (508 mm), 40" (1016 mm), 60" (1524 mm)

Materials of Construction

PP Pleated Depth Media

Filter Media: Polypropylene (PP), pleated depth
Support/Drainage: Polypropylene
End Caps: Glass Fiber Reinforced Polypropylene
Seal Materials: NBR / Silicone / EPDM / Viton

Filter Performance

Micron Ratings: 1 µm, 5 µm, 10 µm, 15 µm, 20 µm, 40 µm, 70 µm
Max. Operating Temperature: 85°C
Max. Differential Pressure (Inside → Outside): 3.0bar @ 65°C
Recommended Replacement ΔP: 2.5 bar @ 20°C
Max. Flow Rate: 3.9m³/h 70inches
Filtration Direction: Inside to outside

Ordering Information

PHFZ | PP | 0500 | 70 | III | Z2 | W1

Series

Media

Micron

Length

Structure

Connection Thread

End-thread

PHFZ

PP=polypropylene

0100=1.0um

0400=4.0um

1000=10um

60=60" 70=70"

I= 7parts(Φ69)

II=40"+30"(Φ69)

III=20"+20"+20"+10"(Φ69)

Z1=1 1/2"-12

Z2=M33*1.5

W1=M8

W22=M10

W3=M6

W4=3/8

Frequently Asked Questions

1. Who is the manufacturer and brand of the filter cartridges?

Shanghai Pullner Filtration Technology Co., Ltd.

2. Can you provide samples?

We offer 1-2 free samples if you place formal orders in future. Buyers only need to cover the shipping cost.

3. What is the delivery time?

Delivery time is usually within 5-10 working days depending on the order quantity.

4. Is the filtration accuracy nominal or absolute?

Our standard products use nominal rating. However, we can customize absolute-rated filters based on your application requirements.

5. Which brands can your filters replace?

Our filters can be used as replacements for major brands such as PALL, 3M, PARKER, GARVER, and others.

6. What is the minimum order quantity (MOQ)?

As a manufacturer, we accept a minimum order quantity of just 1 piece.
