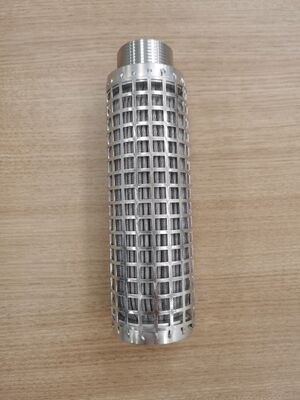

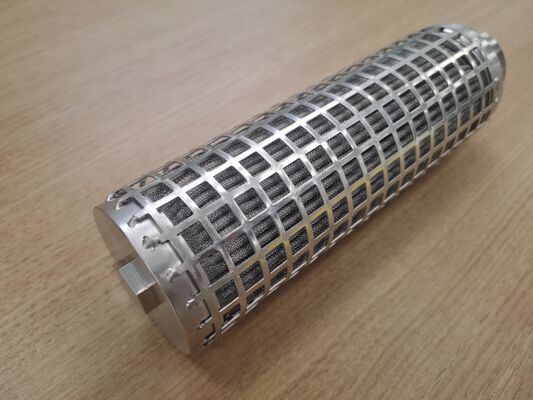

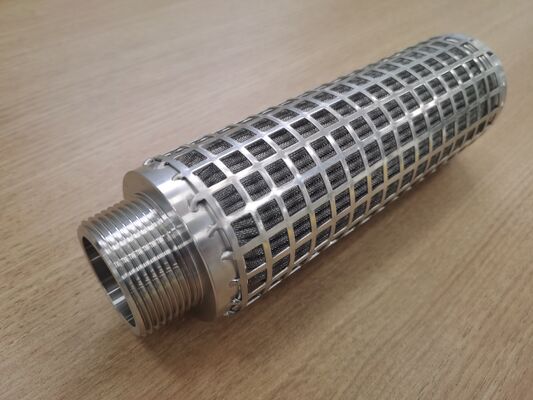

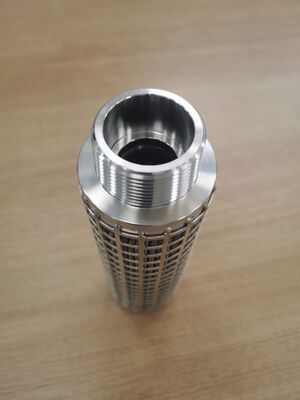

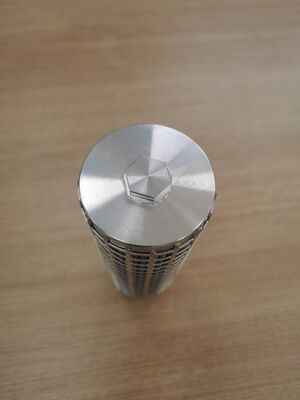

PHSF 316L Stainless Steel Fiber Felt Pleated Filter Cartridge
Product Overview
PHSF Stainless Steel Pleated Felt Filter Cartridges are constructed with stainless steel sintered felt and shaped during the pleating process. These industrial filters feature a large filtration area for enhanced performance.
Advanced Filtration Technology
PHFS Filter Cartridges feature graded pore size distribution from coarse upstream to fine downstream, resulting in higher dirt holding capacity and extended service life.
Key Features & Benefits
- All stainless steel construction for maximum durability
- Stainless steel pleated design for optimal surface area
- Depth porous material for superior filtration
- High dirt holding capacity and long usage life
- All-welded construction prevents media loss
- Excellent corrosion resistance, high pressure and temperature tolerance
Technical Specifications
| Core/Outer Guard |
SUS 304/316L Stainless steel porous plate |
| Filter Medium |
Upstream Support: 30 mesh or 40 mesh stainless steel wire mesh
Filter net: Required accuracy of stainless steel wire mesh
Downstream Support: 30 mesh or 40 mesh stainless steel wire mesh |
| End Caps |
SUS 304/316L Stainless steel |
| Max. Operating Differential Pressure |
5.0 bar |
| Max. Operating Temperature |
480℃ |
Standard Dimensions
| Standard OD |
Standard Length |
Filter Area |
65mm
Customized on request |
5in. (127mm) |
0.096 m² |
65mm
Customized on request |
10in. (254mm) |
0.19 m² |
65mm
Customized on request |
20in. (508mm) |
0.38 m² |
65mm
Customized on request |
30in. (762mm) |
0.57 m² |
65mm
Customized on request |
40in. (1016mm) |
0.76 m² |
Material Properties
| No. |
Liquid Accuracy(um) |
Gas Accuracy (um) |
Porosity(%) |
Average Air-permeability (L/dm².min) |
Liquid Flow Rate(m³/h) |
| 1 |
5 |
1 |
67 |
5.0 |
34 |
| 2 |
10 |
2 |
73 |
7.8 |
108 |
| 3 |
15 |
3 |
75 |
7.8 |
180 |
| 4 |
20 |
10 |
82 |
13 |
265 |
| 5 |
25 |
16 |
78 |
19 |
325 |
| 6 |
30 |
20 |
78 |
-- |
450 |
| 7 |
40 |
30 |
75 |
-- |
620 |
| 8 |
60 |
45 |
85 |
-- |
1350 |
Frequently Asked Questions
1.Are you a trading company or a manufacturer?
We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide total filtration solutions with our many years of industry experience.
2.May I have samples?
Yes, sample costs can be refunded if you place formal orders in the future.
3.Can you make customized products?
Yes, we can customize products based on your detailed specifications or drawings. Our mission is to bring customer ideas to life and provide satisfactory solutions.
4.Can I use our own designed package?
Yes, size, color, logo and packaging style can all be customized.
5.What's your MOQ?
Normally 100 pieces per item. Trial orders below MOQ are welcome - contact us for shipping recommendations to optimize costs.
6.I am a small business owner, can I buy from you?
Yes, you are warmly welcomed. Growing with our customers is our goal, and we look forward to growing together with you.
7.What is your general lead time?
Normally 5-7 working days for off-the-shelf samples and 10-15 days for bulk production.
8.How should I pay you?
T/T, L/C, Western Union, MoneyGram, and other payment methods are acceptable.
9.What certificate do you have?
Our factory is ISO9001, ISO14001, and ISO45001 certified.
10.How should I place an order?
Please click "Send Inquiry" and our sales engineer will recommend suitable products and provide valuable selection suggestions.
Manufacturer Profile
Shanghai Pullner Filtration Technology Co., Ltd.
A well-known enterprise integrating R&D, production and sales of micro membrane filtration equipment and filtration systems.
Our Main Products
- Membrane pleated filter cartridge
- High flow filter cartridge
- Condensate polishing pleated filter element
- Condensate polishing string wound filter element
- Membrane wound filter cartridge
- Melt blown filters
- Metal wedge wire filter
- Metal sintered mesh filters
- Sintered fiber felt filter
- Power sintered filters
- All kinds oil and gas filters
Production Capabilities
We have 10,000 square meters of 100,000-level Clean Room, and more than 10 production lines for various precision filters cartridge. Strict quality control of products, in accordance with international certification standards. At the same time, it is equipped with a well-structured high-level technical R&D and verification team, providing quality products for customers.
