Product Details:
|

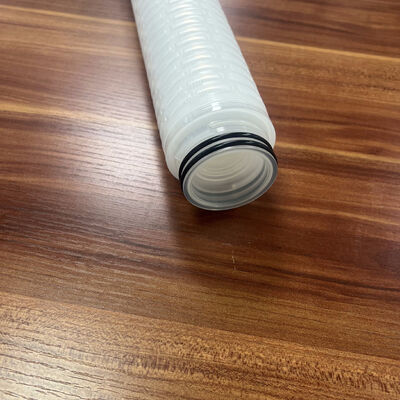

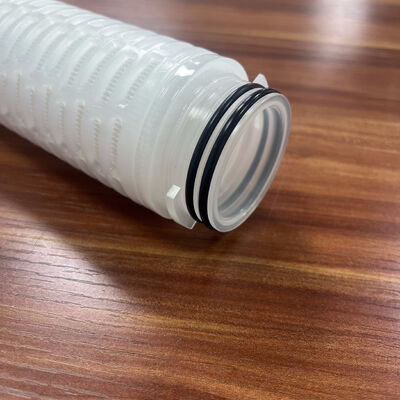

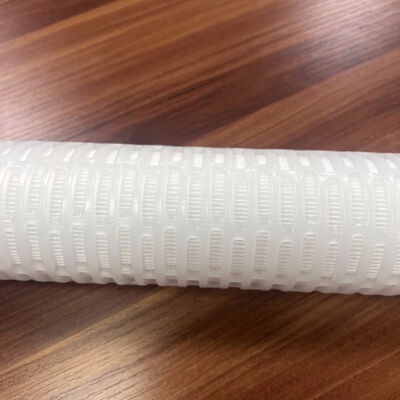

| Highlight: | 30inch PP Pleated Filter Cartridge |
||
|---|---|---|---|
| Parameter | Specification |
|---|---|
| Filter Medium | Polypropylene (PP) |
| Support/Drainage | Polypropylene (PP) |
| Core/Cage/End Cap | Polypropylene (PP) |
| Outside Diameter | 2.7" (68.5mm) |
| Length | 10", 20", 30", 40" |
| Micron Ratings | 0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um |
| Filtration Area | 0.4-0.7m² |
| Max Operating Differential Pressure | ΔP≤0.35MPa at 25℃ |
| Max Operating Differential Pressure (Reverse) | ΔP≤0.28MPa at 60℃ |
| Max Operating Temperature | 80℃ (Stainless steel support recommended above 50℃) |
| Sterilization Temperature | 30 minute cycles @121℃ |
| Max Operating Pressure | 4bar/21℃, 2.4bar/80℃ |
| Component | Material |
|---|---|
| Filter Media | Polypropylene (PP) |
| Support/Drainage | Polypropylene (PP) |
| Cage/Core/End Caps | Polypropylene (PP) |
| Seal Material | Silicone, NBR, Vit, EPDM |
