PHFZ Series 60-Inch PP High Flow Filter Cartridge for Power Plant Condensate Polishing

PHFZ Series 60-Inch PP High Flow Filter Cartridge for Power Plant Condensate Polishing
PHFZ Series 60-Inch PP High Flow Filter Cartridge for Power Plant Condensate Polishing
PHFZ Series 60-Inch PP High Flow Filter Cartridge for Power Plant Condensate Polishing PHFZ Series 60-Inch PP High Flow Filter Cartridge for Power Plant Condensate Polishing PHFZ Series 60-Inch PP High Flow Filter Cartridge for Power Plant Condensate Polishing PHFZ Series 60-Inch PP High Flow Filter Cartridge for Power Plant Condensate Polishing PHFZ Series 60-Inch PP High Flow Filter Cartridge for Power Plant Condensate Polishing PHFZ Series 60-Inch PP High Flow Filter Cartridge for Power Plant Condensate Polishing

Large Image :  PHFZ Series 60-Inch PP High Flow Filter Cartridge for Power Plant Condensate Polishing

Product Details:
Place of Origin: Shanghai, China
Brand Name: Pullner
Certification: ISO9001,ISO14001,ISO45001
Model Number: PHFZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Export standard packaging
Supply Ability: 100 pcs per day
Contact Now

PHFZ Series 60-Inch PP High Flow Filter Cartridge for Power Plant Condensate Polishing

Description
Highlight:

High Flow Condensate Polishing Filter

,

efficient water filtration

,

power plants and industrial applications.

PHFZ Series 60-Inch PP High Flow Filter Cartridge for Power Plant Condensate Polishing
High quality PP material made PHFZ Power Plant Condensing Polishing Water Filter Cartridge with 60 Inches' length

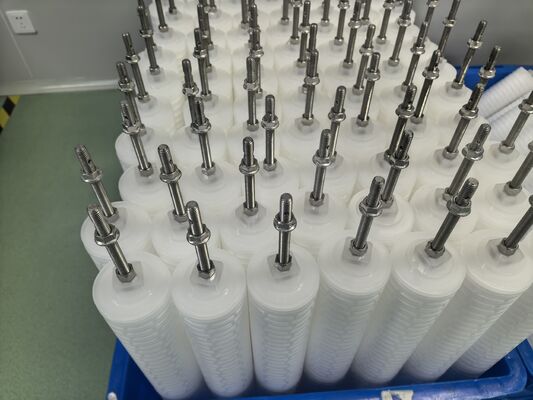

PHFZ Series 60-Inch PP High Flow Filter Cartridge for Power Plant Condensate Polishing 0
The High Flow Pleated PHFZ Filter Cartridge is engineered for high-volume water filtration applications. Utilizing deep-pleated polypropylene (PP) or glass fiber media, this cartridge delivers exceptional high flow rates, low pressure drop, and extended service life.
Featuring 69Φ large diameter design with no center core and dedicated inside-to-outside flow direction, contaminants and particles are efficiently retained inside the cartridge. This design enhances maintenance efficiency and extends filtration cycles while reducing the number of cartridges and housing size required, significantly lowering capital investment, installation space, and labor costs.
Key Features & Benefits
  • High filtration area, high flow rate - Large effective filtration area provides low differential pressure and high throughput
  • High dirt-holding capacity, longer service life - Multi-layer gradient pore structure (deep media design) improves particle retention and dirt loading capacity, extending replacement intervals and reducing operating costs
  • Wide micron ratings and multiple lengths available - Micron ratings from 1 µm to 70 µm and lengths of 20" / 40" / 60" to match diverse filtration requirements
Applications

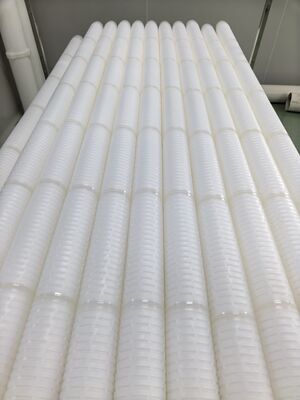

PHFZ Series 60-Inch PP High Flow Filter Cartridge for Power Plant Condensate Polishing 1
Water Treatment
  • Drinking water treatment
  • Commercial water filtration
  • RO pre-filtration for seawater desalination
Industrial Filtration
  • Energy, coatings, graphite
  • Petrochemical, electroplating
  • Mining, machining, industrial water treatment
Power Plant
  • Make-up water
  • Condensate water
  • Cooling water pre-filtration
Dimensions (Nominal)
  • Outer Diameter (OD): 69 Φ
  • Length: 20" (508 mm), 40" (1016 mm), 60" (1524 mm)
Materials of Construction
PP Pleated Depth Media
  • Filter Media: Polypropylene (PP), pleated depth
  • Support/Drainage: Polypropylene
  • End Caps: Glass Fiber Reinforced Polypropylene
  • Seal Materials: NBR / Silicone / EPDM / Viton
Filter Performance
  • Micron Ratings: 1 µm, 5 µm, 10 µm, 15 µm, 20 µm, 40 µm, 70 µm
  • Max. Operating Temperature: 85°C
  • Max. Differential Pressure (Inside -> Outside): 3.0bar @ 65°C
  • Recommended Replacement ΔP: 2.5 bar @ 20°C
  • Max. Flow Rate: 3.9m³/h 70inches
  • Filtration Direction: Inside to outside
Ordering Information
PHFZ | PP | 0500 | 70 | III | Z2 | W1
Series Media Micron Length Structure Connection Thread End-thread
PHFZ PP=polypropylene 0100=1.0um
0400=4.0um
1000=10um		 60=60"
70=70"		 I= 7parts(Φ69)
II=40"+30"(Φ69)
III=20"+20"+20"+10"(Φ69)		 Z1=1 1/2"-12
Z2=M33*1.5		 W1=M8
W22=M10
W3=M6
W4=3/8
Manufacturing Facilities
Pullner Workshop

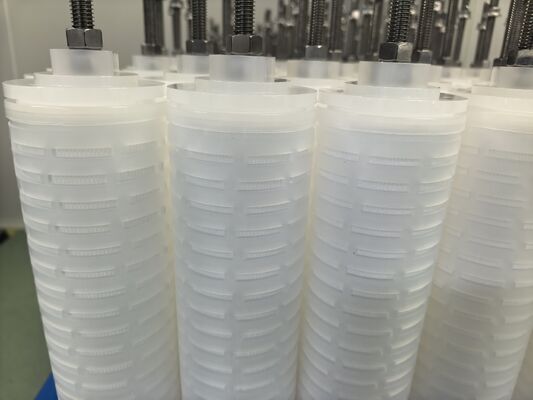

PHFZ Series 60-Inch PP High Flow Filter Cartridge for Power Plant Condensate Polishing 2
Pullner Laboratory

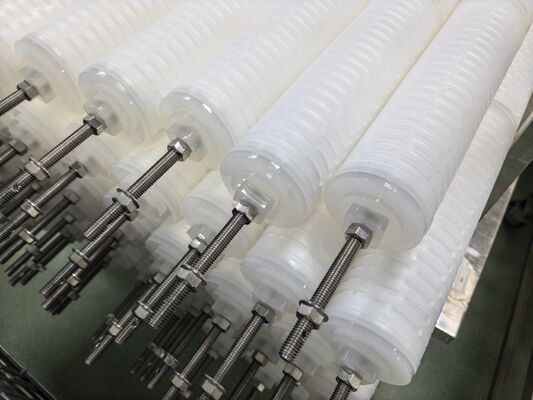

PHFZ Series 60-Inch PP High Flow Filter Cartridge for Power Plant Condensate Polishing 3
Frequently Asked Questions
Who is the manufacturer and brand of the filter cartridges?
Shanghai Pullner Filtration Technology Co., Ltd.
Can you provide samples?
We offer 1-2 free samples if you place formal orders in future. Buyers only need to cover the shipping cost.
What is the delivery time?
Delivery time is usually within 5-10 working days depending on the order quantity.
Is the filtration accuracy nominal or absolute?
Our standard products use nominal rating. However, we can customize absolute-rated filters based on your application requirements.
Which brands can your filters replace?
Our filters can be used as replacements for major brands such as PALL, 3M, PARKER, GARVER, and others.
What is the minimum order quantity (MOQ)?
As a manufacturer, we accept a minimum order quantity of just 1 piece.
