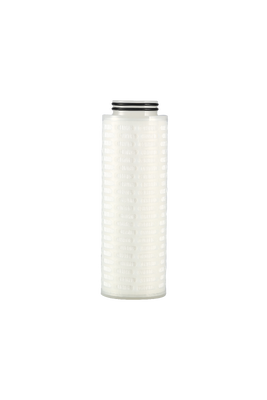

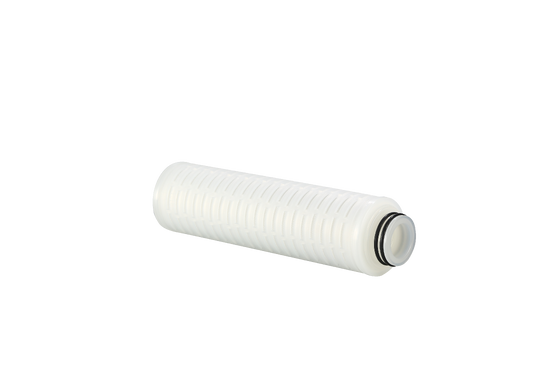

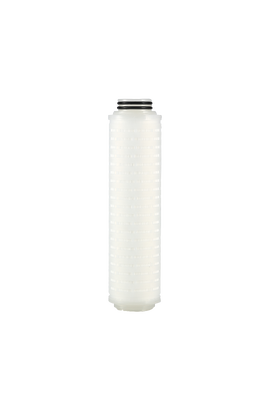

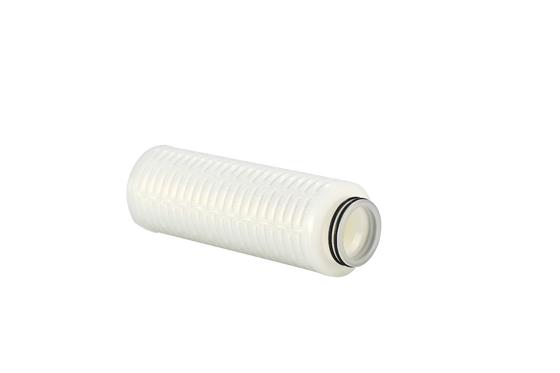

130 Series High Flow Filter Cartridge with 2.2 m² Filtration Area and 200 L/min Flow Capacity for Wet Process Filtration

130 Series High Flow Filter Cartridge with 2.2 m² Filtration Area and 200 L/min Flow Capacity for Wet Process Filtration
130 Series High Flow Filter Cartridge with 2.2 m² Filtration Area and 200 L/min Flow Capacity for Wet Process Filtration
130 Series High Flow Filter Cartridge with 2.2 m² Filtration Area and 200 L/min Flow Capacity for Wet Process Filtration 130 Series High Flow Filter Cartridge with 2.2 m² Filtration Area and 200 L/min Flow Capacity for Wet Process Filtration 130 Series High Flow Filter Cartridge with 2.2 m² Filtration Area and 200 L/min Flow Capacity for Wet Process Filtration 130 Series High Flow Filter Cartridge with 2.2 m² Filtration Area and 200 L/min Flow Capacity for Wet Process Filtration 130 Series High Flow Filter Cartridge with 2.2 m² Filtration Area and 200 L/min Flow Capacity for Wet Process Filtration

Large Image :  130 Series High Flow Filter Cartridge with 2.2 m² Filtration Area and 200 L/min Flow Capacity for Wet Process Filtration

Product Details:
Place of Origin: Shanghai, China
Brand Name: Pullner
Certification: ISO9001/ISO45001/ISO14001
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Export standard packaging
Supply Ability: 100 pcs per day
Contact Now

130 Series High Flow Filter Cartridge with 2.2 m² Filtration Area and 200 L/min Flow Capacity for Wet Process Filtration

Description
Highlight:

High Generation Line Wet Process

,

semiconductor

,

wet process filtration.

130 Series High Generation Line Wet Process High Flow Filter Cartridge designed for high flow requirements in wet process filtration.

Product Overview

130 Series high generation line wet process high flow filter cartridge is mainly designed for high flow requirements in wet process filtration.

Compared with conventional filter cartridges, the 130 Series provides a much larger filtration area and higher flow capacity. A single cartridge can offer more than 2.2 m² filtration area and meet flow requirements of more than 200 L/min, with typical flow demand up to 250 L/min depending on operating conditions.

This series is especially suitable for high-generation display panel production lines, electronics wet process filtration, high-pressure applications, and process systems where large flow rate, stable filtration performance, and reduced equipment downtime are required.

The cartridge is available with different filter media, including PTFE, PES, and PP, to meet different chemical compatibility and filtration precision requirements.

130 Series High Flow Filter Cartridge with 2.2 m² Filtration Area and 200 L/min Flow Capacity for Wet Process Filtration 0

Key Features
High Throughput

The filtration area of a single cartridge can reach more than 2.2 m², allowing high flow rate and stable operation. It is suitable for process conditions requiring large flow capacity and high-pressure operation.

Cost Effective Operation

Large filtration area, high flow rate, and strong dirt holding capacity help extend service life, reduce filter change-out frequency, shorten equipment downtime, and lower overall operating cost.

Multiple Filter Media and Micron Ratings

Different media options are available, including PP, PES, and PTFE. Filtration precision ranges from 0.01 μm to 90 μm, making the cartridge suitable for a wide range of wet process filtration applications.

Electronic Grade Materials

The support, outer cage, center core, and end caps are made of high-purity electronic-grade PP material. Non-contact welding technology is used, with no adhesives or surfactants added, helping control precipitation and ensure filter cartridge safety.

Technical Specifications
Item Specification
Product Series 130-PLPT / PLPTH / PLPE / PLPP Series
Product Type High Generation Line Wet Process High Flow Filter Cartridge
Filter Media PTFE / PES / PP
Available Media Types PLPT: Hydrophobic PTFE；PLPTH: Hydrophilic PTFE；PLPE: PES；PLPP: PP
Cage / Core / End Caps High-purity electronic-grade PP
Filtration Area More than 2.2 m² per cartridge
Flow Capacity More than 200 L/min, up to about 250 L/min depending on conditions
Filtration Rating 0.01 μm – 90 μm
Maximum Operating Temperature 70°C
Maximum Operating Differential Pressure 4 bar @ 21°C；2.4 bar @ 70°C
Construction Non-contact welding, no adhesives, no surfactants
Customization Media type, micron rating, length, end cap and sealing material can be customized
Ordering Information
Diameter Series Micron Length End Cap Type Seal Material
130

PLPT PLPTH

PLPE

PLPP

0010=0.1μm

0020=0.2μm

0050=0.5um 0100=1.0μm

0300=3.0μm

0500=5.0μm 1000=10um

10=10"

20=20"

 S=334 Single O-ring

E=EPDM

V=FKM

P=FEP

0004=0.04μm

0005=0.05um

0010=0.1μm

0020=0.2μm

0045=0.45μm

0065=0.65μm 0120=1.2μm

0010=0.1μm

0050=0.5μm

0100=1.0μm

0150=1.5μm

0300=3.0μm

0500=5.0μm

1000=10μm

2000=20μm

4000=40μm

7000=70μm

9000=90μm
Recommended Industries
Industry Application
Semiconductor Etching liquid, stripping liquid, high-purity chemical filtration
Electronics Process chemical filtration, precision liquid filtration
Chemical Processing Strong acid, alkali, solvent and oxidizing liquid filtration
Industrial Manufacturing Corrosive liquid pre-filtration and final filtration
High-Purity Liquid Processing Fine particle removal and process protection
Product Advantages

The 130 Series is designed for applications where ordinary cartridges cannot provide sufficient flow rate or service life. With more than 2.2 m² filtration area, it can reduce the number of cartridges used in the system and lower the frequency of filter replacement.

The high-purity PP structure and adhesive-free welding process help reduce extractables and precipitation risks, making the cartridge suitable for electronics and high-purity process applications.

By selecting PTFE, PES, or PP media, users can match the cartridge to different liquid properties, including aqueous process liquids, high-purity chemicals, and corrosive chemical solutions.

Support & Services

We provide comprehensive technical support for installation, operation, and maintenance, including filter replacement guidance and maintenance recommendations. Complete documentation includes user manuals, installation guides, and troubleshooting notes.

Company Profile
Shanghai Pullner Filtration Technology Company facility showing cleanroom workshop and manufacturing equipment

Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of RMB 26 million. The company operates a Class 100,000 cleanroom workshop (3,000 m²) and an on-site Class 1,000 clean laboratory, integrating R&D, manufacturing, and sales of microporous membrane filtration equipment and filtration systems.

Pullner products are widely applied in microelectronics, fine chemicals, new energy, seawater desalination, biotech, and laboratory fields, including LCD panels, semiconductor processing, high-purity chemicals, condensate filtration, and reclaimed water reuse.

The company holds ISO9001 / ISO14001 / ISO45001 certificates, is recognized as a high-tech enterprise, and owns multiple patents. Pullner is also an approved vendor of Saudi Aramco.

Frequently Asked Questions
Q1: Who is the manufacturer and brand?
A1: Manufacturer: Shanghai Pullner Filtration Technology Co., Ltd. / Brand: Pullner.
Q2: Can you provide samples?
A2: Yes. We can provide 1-2 free samples for evaluation. Buyers only cover shipping. (Free samples are typically supported for future formal orders.)
Q3: What is the delivery time?
A3: Usually 5-10 working days, depending on order quantity.
Q4: Is the filtration rating nominal or absolute?
A4: Standard products are nominal. Absolute-rated filters can be customized based on your application.
Q5: Which brands can your filters replace?
A5: Compatible replacements include major brands such as PALL, 3M, PARKER, and others.
Q6: What is the MOQ?
A6: Standard MOQ is 1 piece (factory direct). For certain models or customized specs, MOQ may vary.
